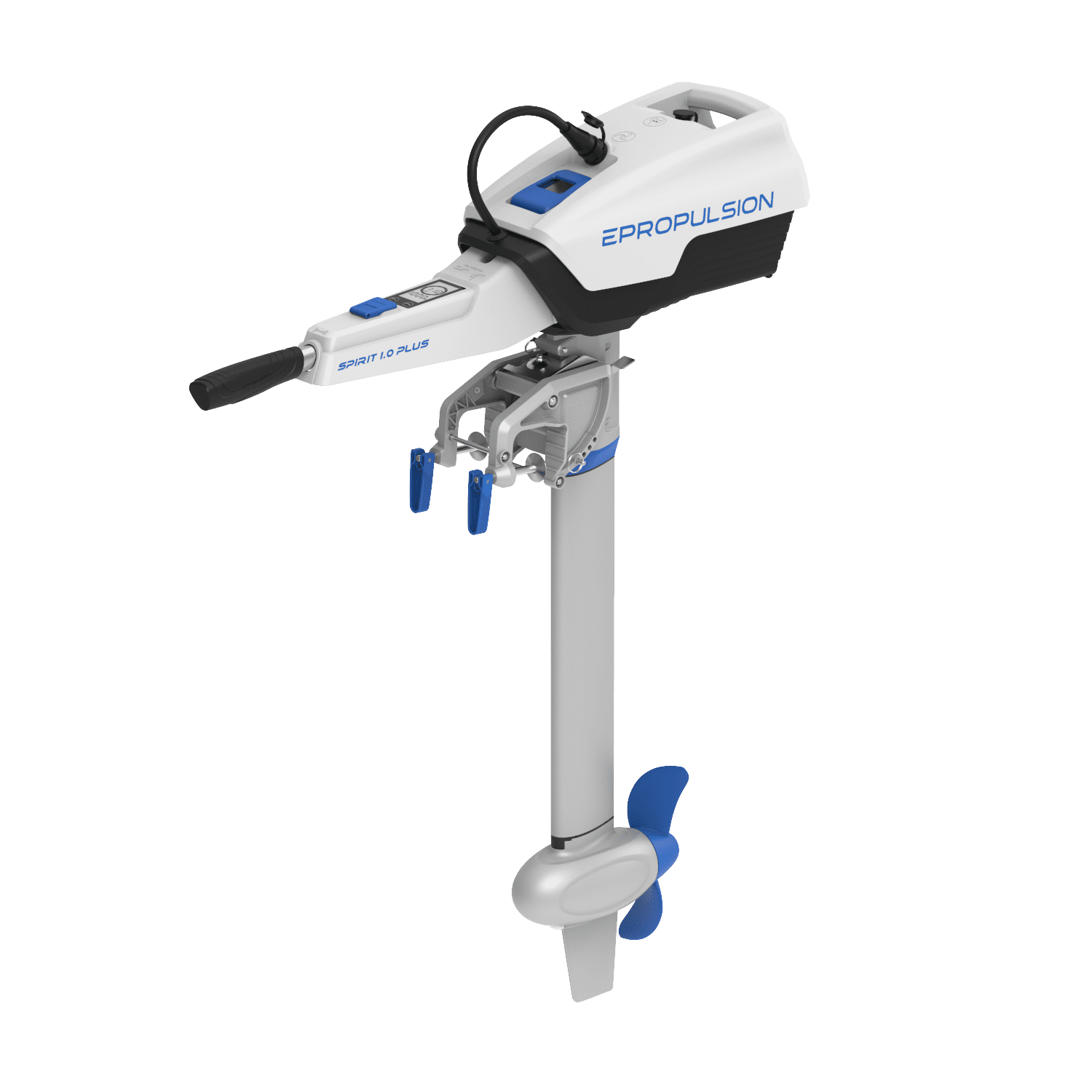

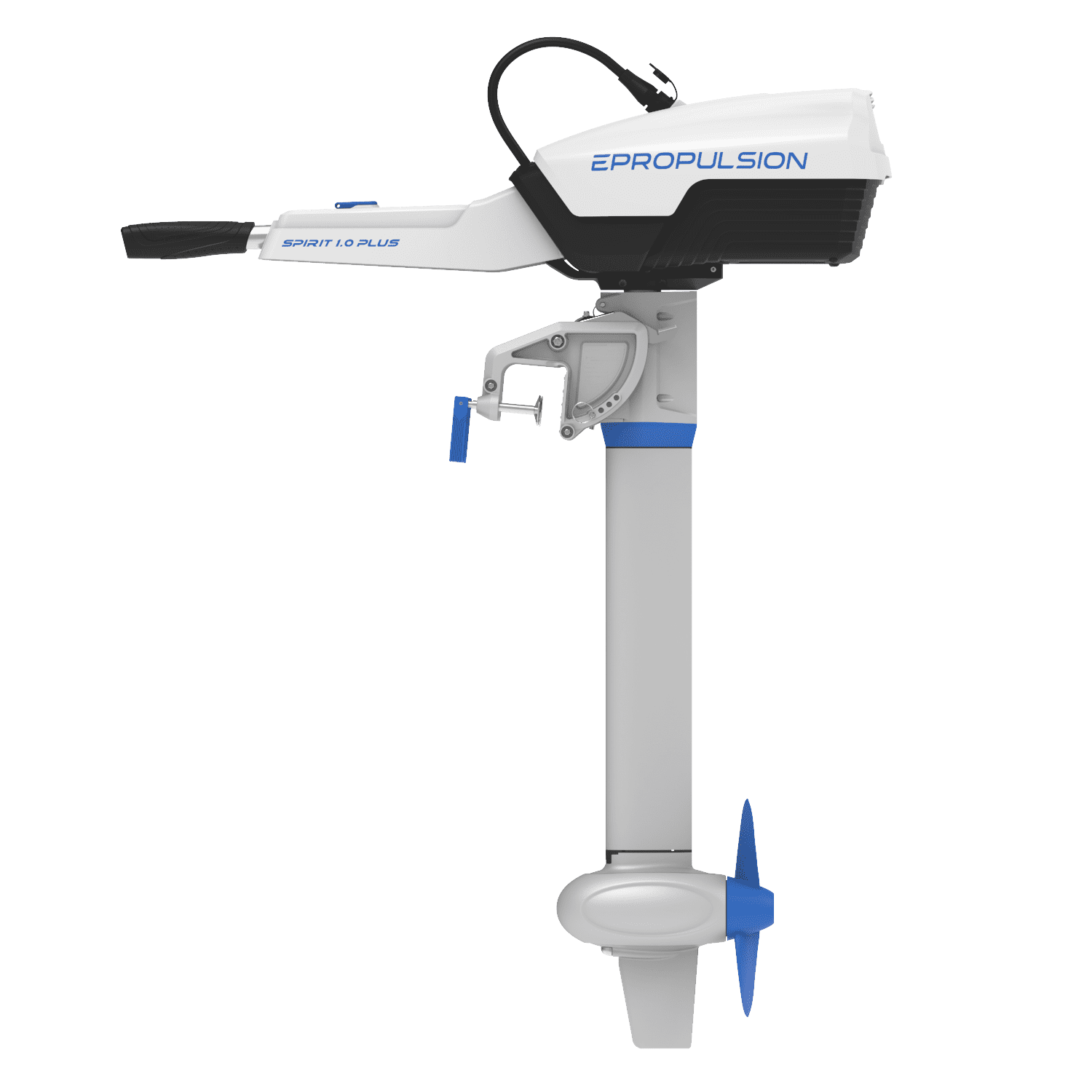

Spirit 1.0 Plus Short Shaft - 1kW Electric Outboard Motor

1276 Wh Battery | 1kW | 3HP | Short Shaft | 19.3KG

The Spirit 1.0 Plus is a versatile 1kW motor, designed for a variety of boats including dinghies, fishing vessels, sailboats, and tenders. This portable powerhouse boasts a large, integrated 1,276 Wh lithium battery for extended travel distance. Offering agility, lightweight construction, and eco-friendly energy, it stands out as a top-notch marine choice.

Specifications:

Power: 1 kW (3HP equivalent**)

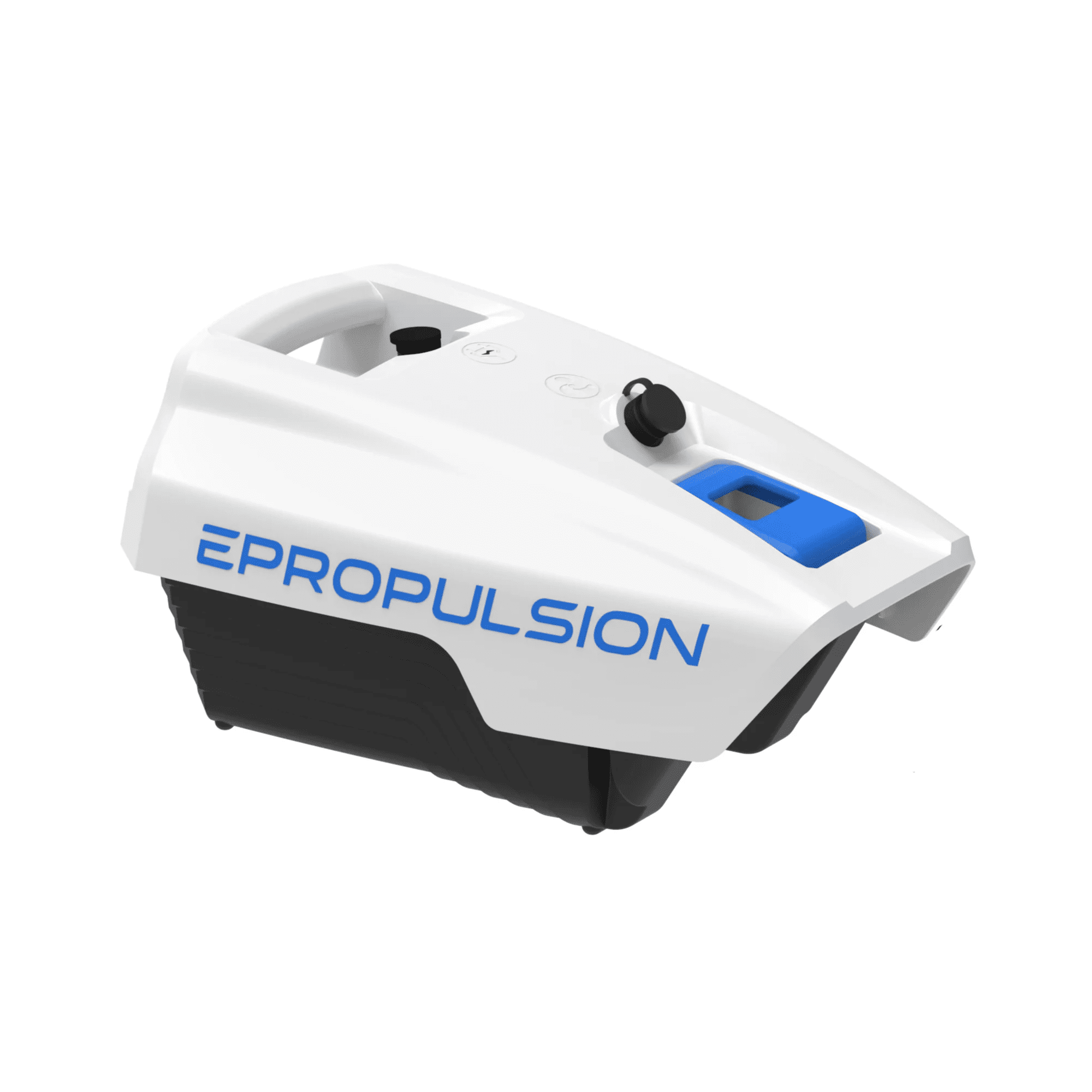

Standard Battery: Spirit Battery Plus, 1276 Wh li-ion polymer
Input Voltage: 39V – 60V
Motor Weight: 10.6 kg
Battery Weight: 8.7 kg
Standard Charging: 8.5 Hrs
Fast Charging: 3.5 Hrs
External Battery: Yes, and E-Series Battery recommended
Propeller: 11″ × 5.8″ 2-blade composite propeller
Trim / Tilt Angle: 0°, 7°, 14°, 21° / 70°
Shaft Length: Short
Control: Tiller
Hydrogeneration: No
Motor: Brushless DC motor
Direct Driver: Yes


** Any reference to horsepower (HP) for electric motors is a theoretical equivalent based on thrust and performance characteristics, and not a direct measure of power. This comparison is intended for illustrative purposes only and may not reflect exact power equivalency.

Performance, Speed and Range:

Spirit 1.0 with integrated 1276 Wh battery

* Depends on type of boat, load, propeller and conditions. Speed and range indications do not represent a legal guarantee.
