Hurley H2O Davit System (10" Mount Version)
This Hassle Free System Lets You Lift And Pull Your Dinghy On For Easy Storage Or Just Push Off For Launching
£
1,400.00
Product Code:
H2O-1012H10
Product Brand:
Hurley Marine
Product Condition:
New
Send to a friend
Print
Product Description

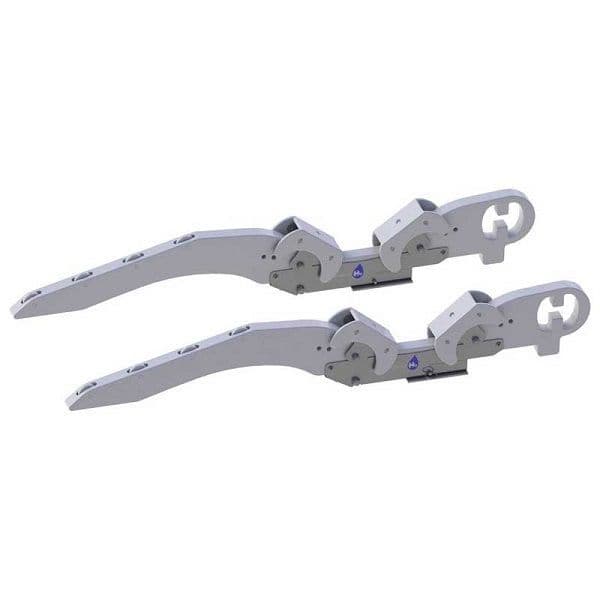

Hurley H2O Davit System
10" Mount Version

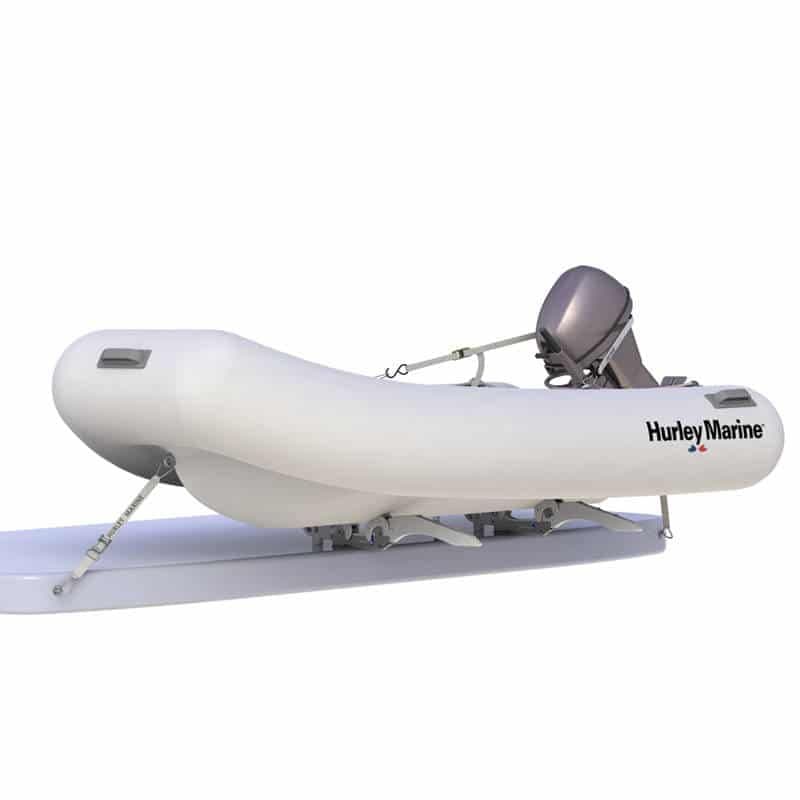

This rugged dinghy davit system lets you lift and pull your dinghy on for easy storage or just push-off for launching. Easily mounted on the swim platform and can be installed while the vessel is in the water.
Multiple Position Adjusting Chock System, adjusts to hull configuration
Can Be Used for Soft or Rigid Tenders
Adjustable Cradle Angles for Easy Deployment & Retrieval
Independent Cradles with Rollers
Each Roller Well has a Weap Hole for Water to Drain
Multiple Mount Sizes to Accommodate Different Size Platforms
Can Be Used on Hydraulic Swim Platforms with Existing Channels to Remove Those Ugly & Dangerous Chocks
Superior Quality and Craftsmanship
Weighs in at only 14 pounds
Two year warranty
350 pounds (159 kg) capacity

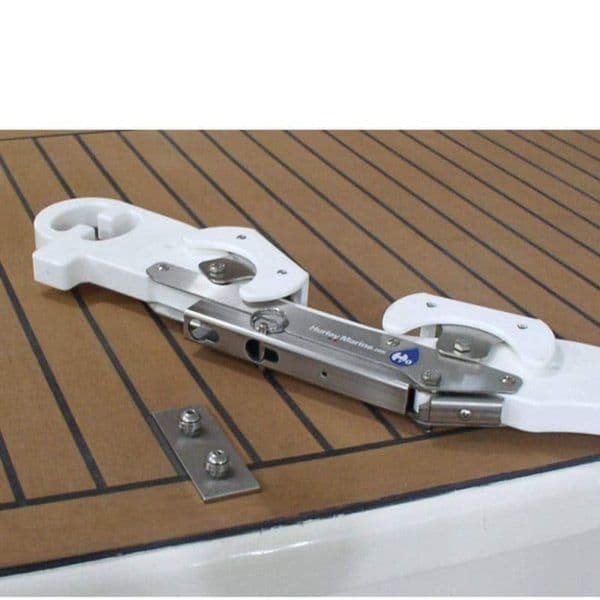

With the Sleek Euro Design, Marine Grade High Density Polyethylene Cradles and Stainless Steel Components the Hurley H2O Dinghy Davit Functions as Good as it Looks and is Impervious to Harsh Environments. Our revolutionary new stainless steel mounting system provides a quick release, leaving a very small footprint profile that could pull a barge. Each mount footprint requires only two bolts for the install and only stands 5/8″ high leaving a clear deck for any activity.
The H2O Dinghy Davit is easily mounted on the swim platform. This hassle free system lets you lift and pull your dinghy on for easy storage or just push-off for launching.

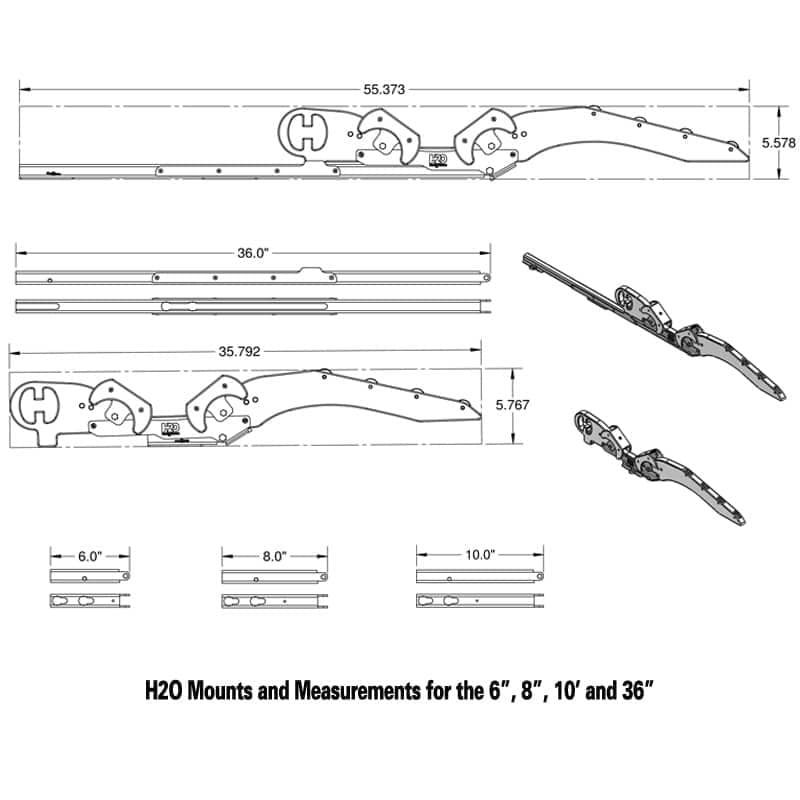

Properly Measuring for your Davit Mount Size
Key Dimensions Needed
A = Swim platforms internal width
B = Platforms depth (transom to edge)
C = Distance from top of platform to the water
D = Beam of dinghy
To determine which mount system will work best for you, measure the beam of your dinghy, divide by 2 and add 4 inches. Now measure your platform (transom to the edge).
You must add a number below to your platform length figure in order to determine which mount to use.
Example: If your dinghy width is 60" then divide by 2 + 4" = 34". Swim platform is 32". By adding 2" to the platform this would make it equal to the dinghy width of 34" so then you would have chosen the 6" mount.
0" ~ 2" for the 6" Mount
2" ~ 4" for the 8" Xtensions
4" ~ 6" for the 10" Xtensions
6"+ for the 36" Xtensions
Hint: 4 inches of the mount must be used to secure to the platform
