Hydrodrive MF115-MRA outboard hydraulic steering system for engines up to 120HP with fixed cylinder. The Hydraulic pump comes with an Anti-Feedback valve and an Automatic Pilot Connection port.
The pump is made of hardened, hot-pressed aluminium
Anodised and painted pump house, manufactured by precision CNC

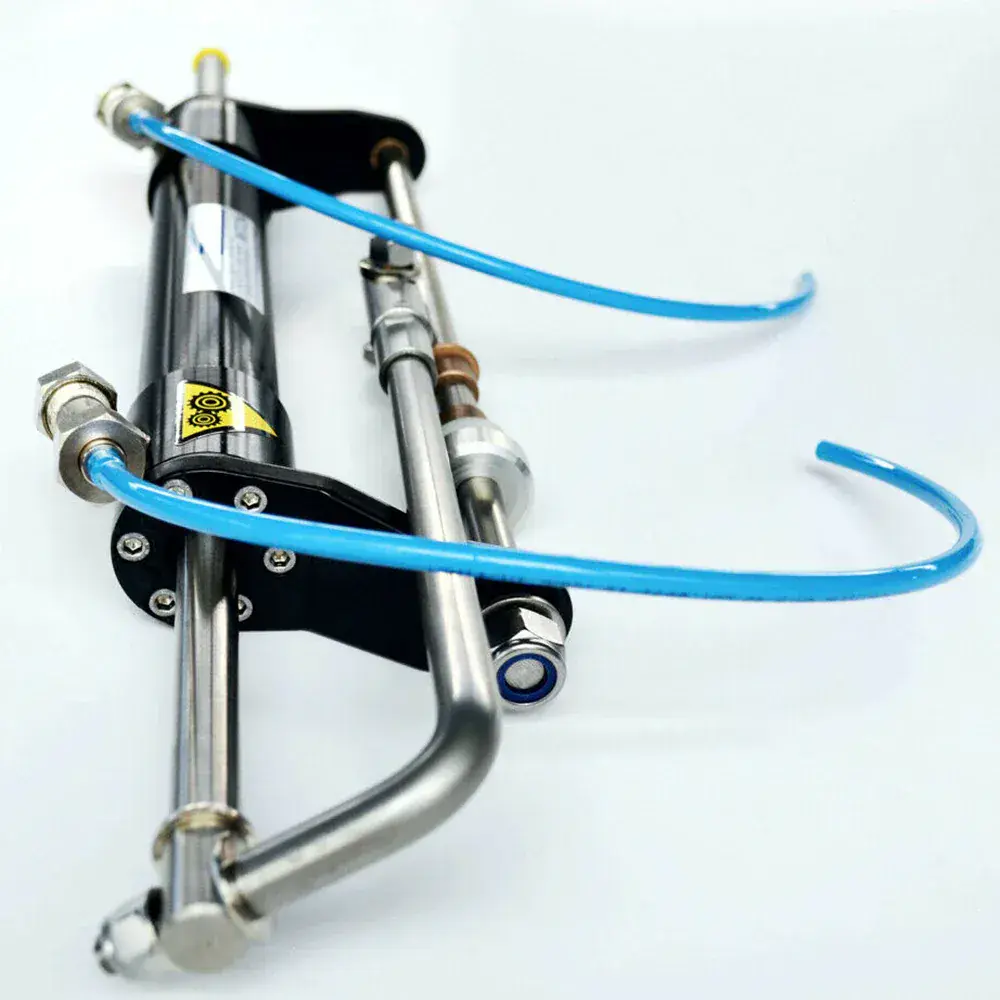

Cylinder made from cold-drawn, hardened anodised and painted aluminium
Universal fittings – Hydrodrive systems can be used on every type of outboard engine.
Easy installation process

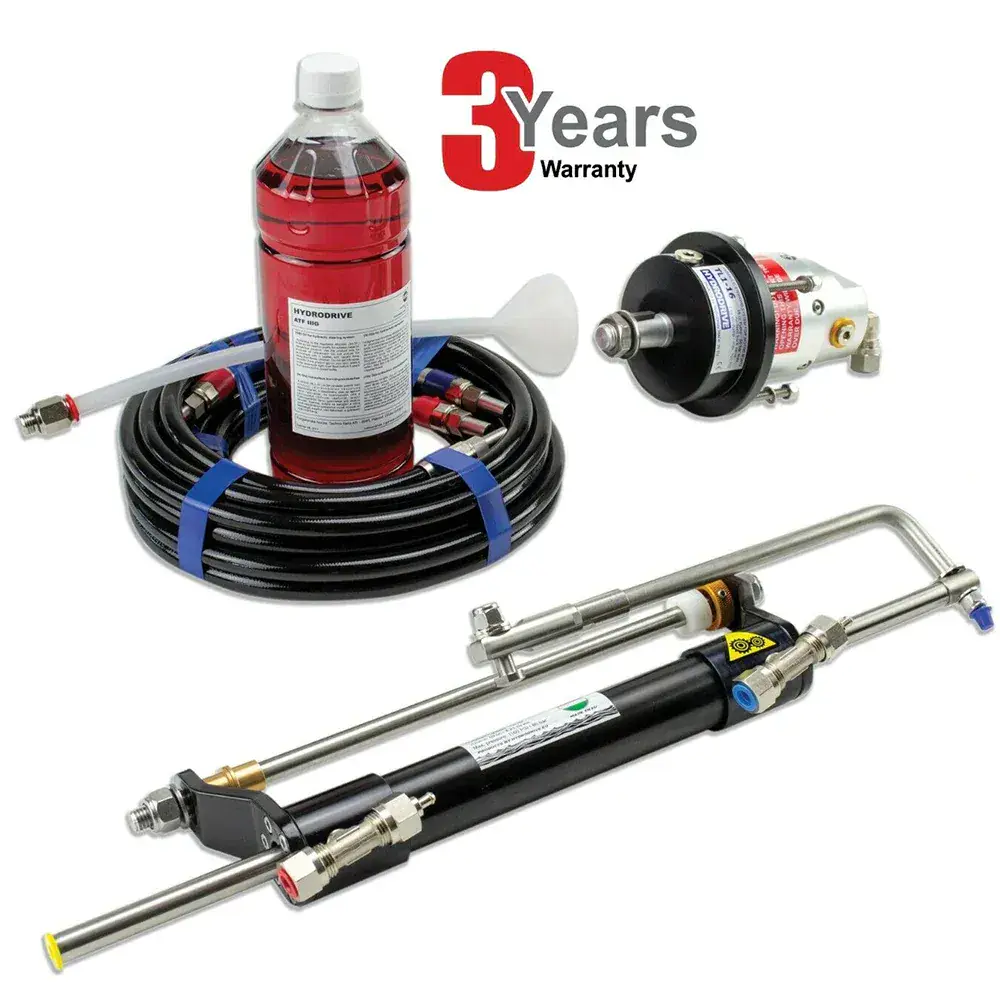

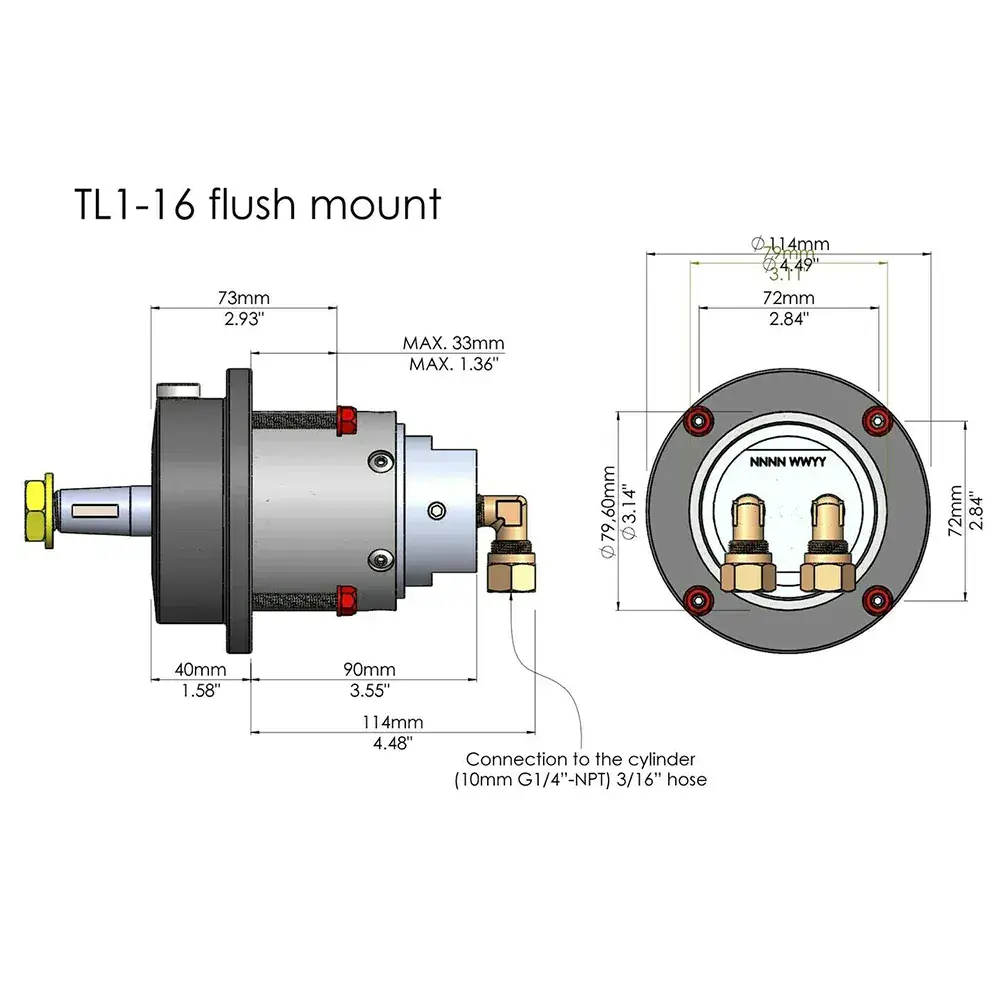

• Hydraulic pump: TL1-16 MRA, 16 cc pump, Max 80 bar, with Lock valve

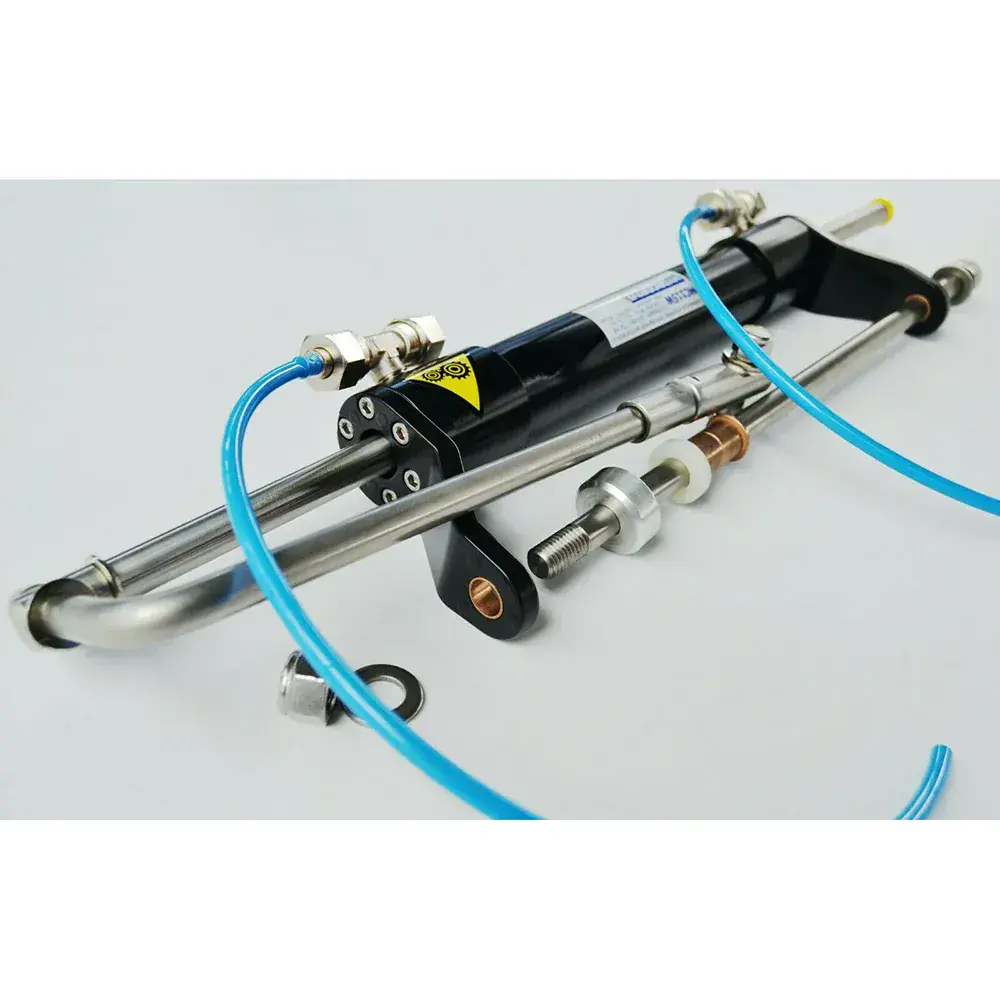

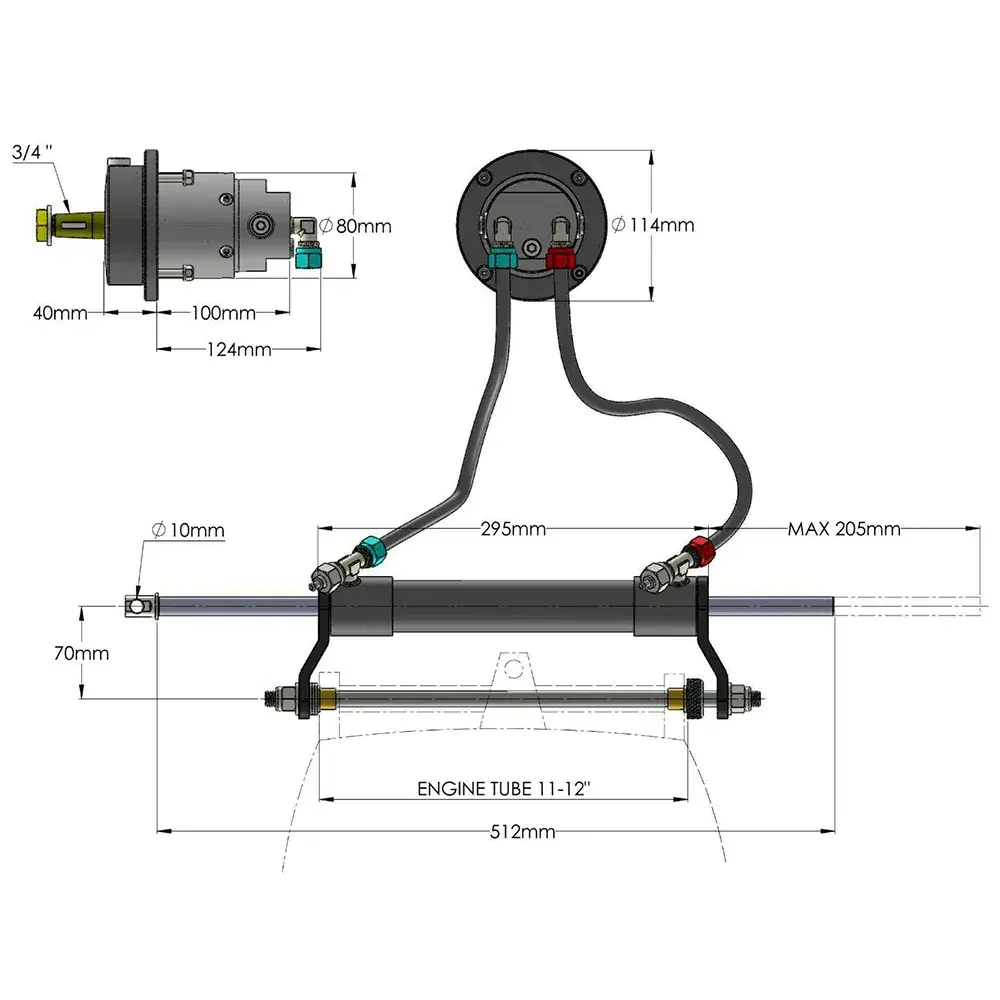

• Hydraulic cylinder: MC115W, 71 cc volume, Max 80 bar, stroke 210 mm
• 5 + 5 m (16′) high-pressure twin hose set with fittings, 1 L hydraulic oil (E-HVLP 46) (temp.+60°/-30°.)
• Turns: 4,5
• Output force: 236 kgf (520 lbf)
• Torque: 50 kgm (362 lbf-ft)
• Max speed: 50 Knots (90 km/h)
Engine Arm (BR72) included.
Why Hydrodrive systems are different from other brands?
- Flexible, high-pressure (twin) hose set with fittings
- 3 years of warranty
- Quick and easy installation method
- Average product life of more than 8+ years
- No oil-top-ups
- No ordinary maintenance during life time.
Universal Applications: Designed to seamlessly fit leading marine engine brands such as Yamaha, Mercury, Evinrude, Suzuki, and more
Technology from the aircraft industry: Hydrodrive systems ensure smooth and accurate manoeuvring in any conditions.
Overload Protection: Hydraulic systems offer inherent overload protection mechanisms. By controlling the pressure or flow rate within the system, hydrodrive systems can prevent damage caused by excessive forces or torque.
