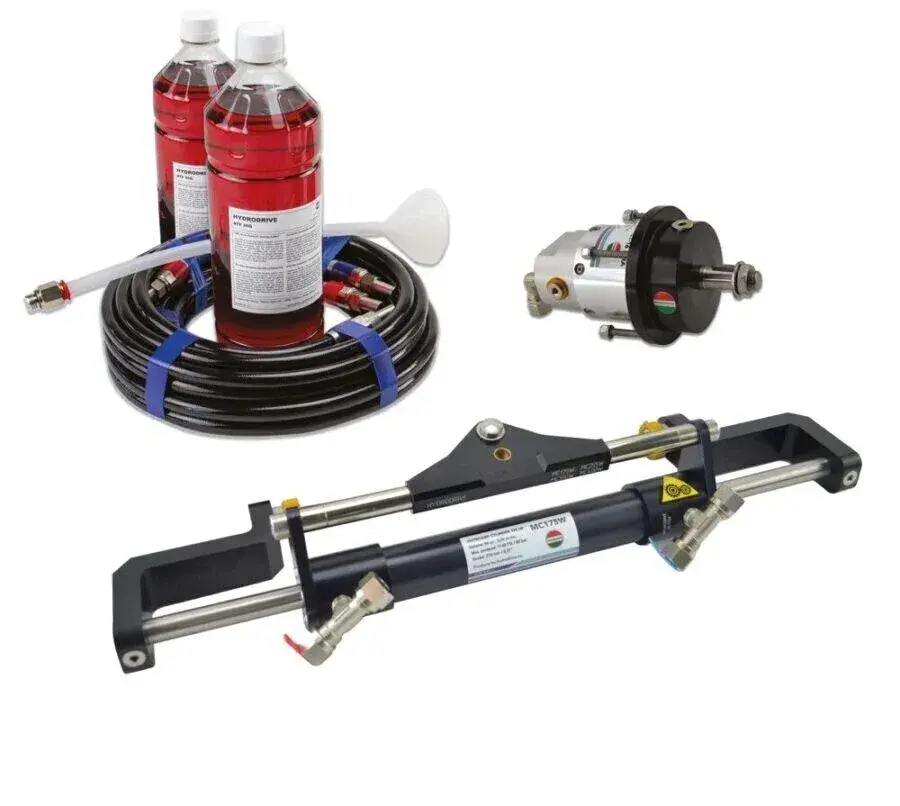

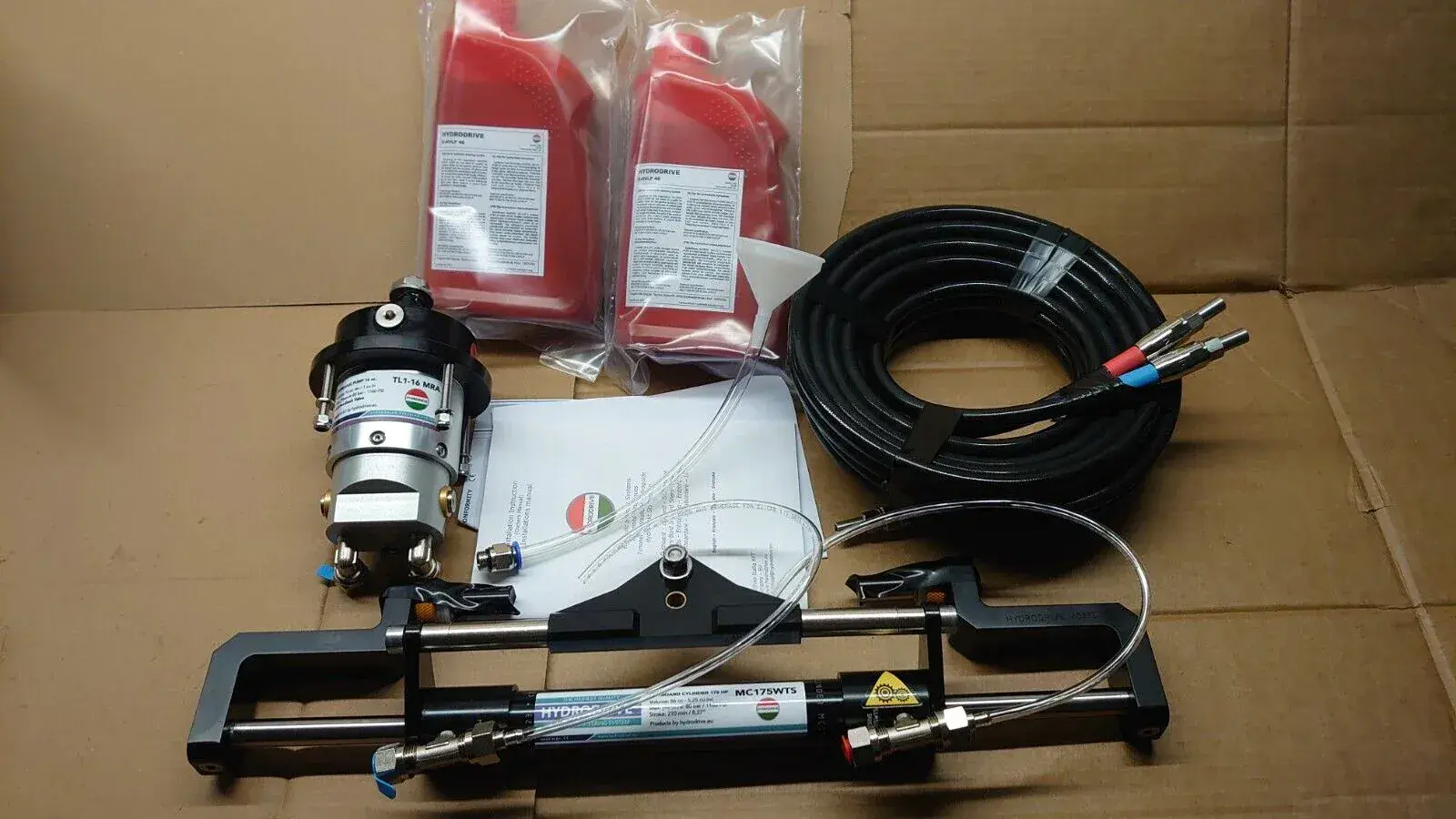

Hydrodrive MF175WTS outboard hydraulic steering system kit up to 175Hp with slider cylinder.

Compact horns mount for engines up to 175 Hp. The hydraulic pump comes with an Anti-Feedback valve and Automatic Pilot connection port. The Hydraulic Cylinder has a new mounting system with a two-position engine plate so you can find the best position for the engine bracket.

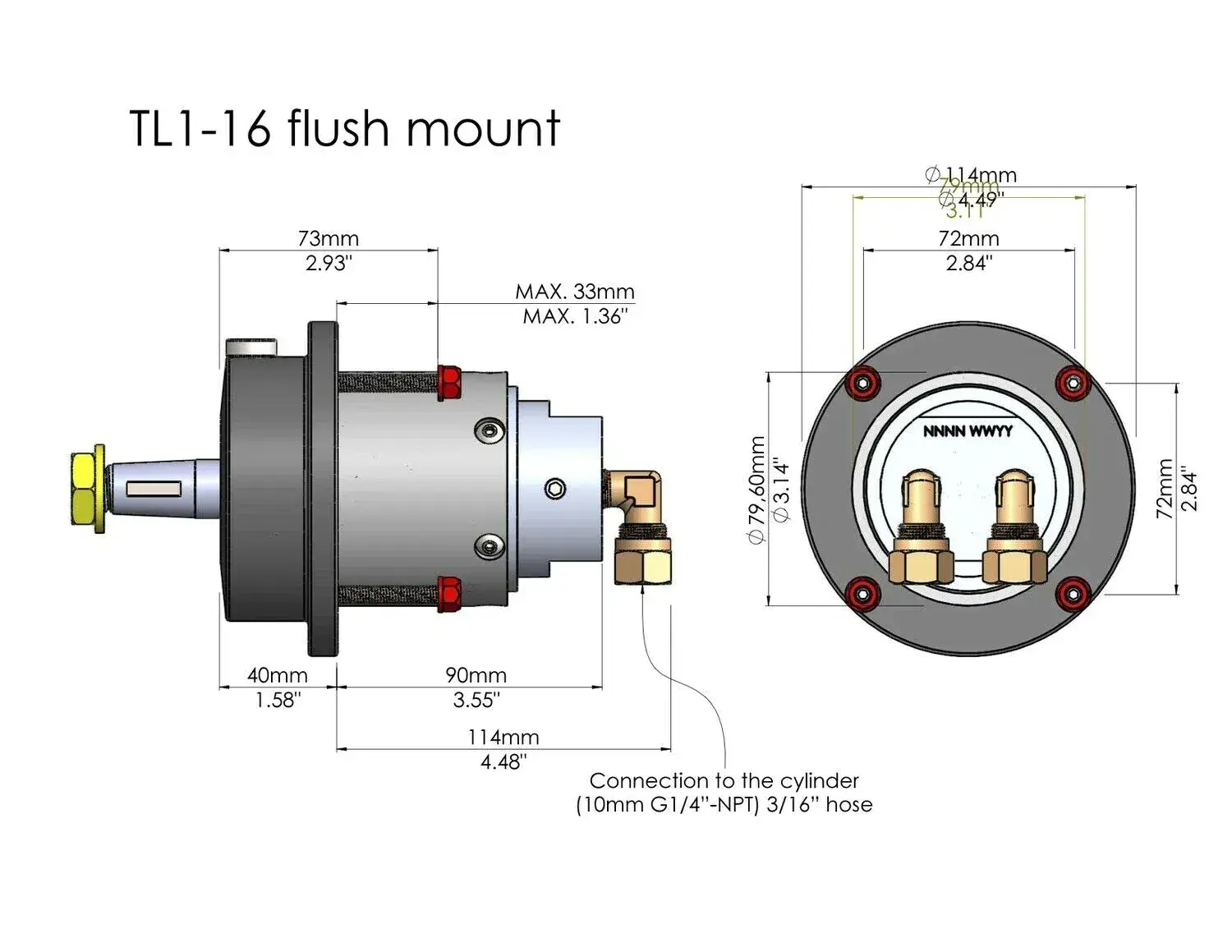

• Hydraulic pump: TL1-16 MRA, 16 cc pump., 5,4 turns
• Hydraulic cylinder: MC175WTS, 86 cc volume, stroke 208 mm
• 6+6 m (20′) high-pressure twin hose set with fittings, 2×1 L hydraulic oil (E-HVLP 46) (temp.+60°/-30°.)
• Output force: 290 kgf (640 lbf)
• Torque:60 Kgm (434 lbf-ft)
• Max speed: 55 kt
• Turns: 5,4

Why Hydrodrive systems are different from other brands?

• Flexible, high-pressure (twin) hose set with fittings
• 3 years of warranty
• Quick and easy installation method
• Average product life of more than 8+ years
• No oil-top-ups
• No ordinary maintenance during life time.

Universal Applications:  Designed to seamlessly fit leading marine engine brands such as Yamaha, Mercury, Evinrude, Suzuki, and more

Technology from the aircraft industry: Hydrodrive systems ensure smooth and accurate manoeuvring in any conditions.

Overload Protection: Hydraulic systems offer inherent overload protection mechanisms. By controlling the pressure or flow rate within the system, hydrodrive systems can prevent damage caused by excessive forces or torque.
