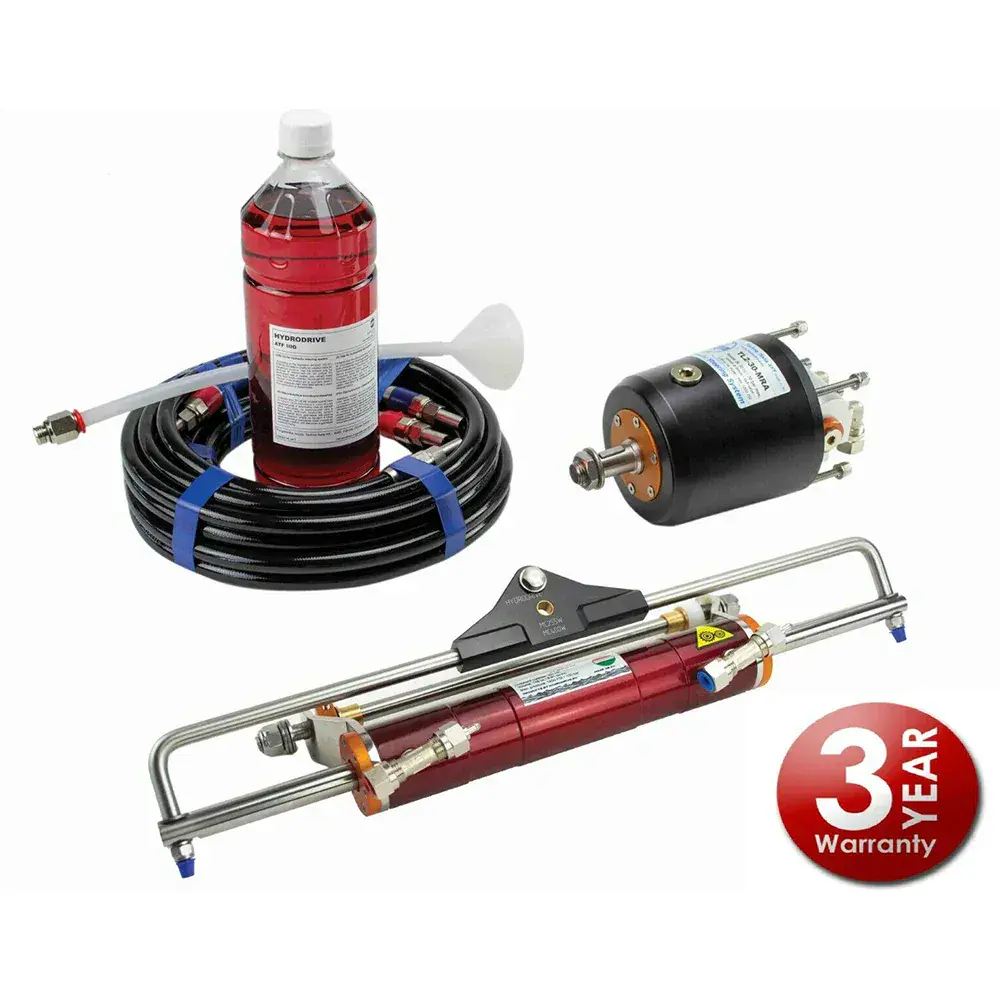

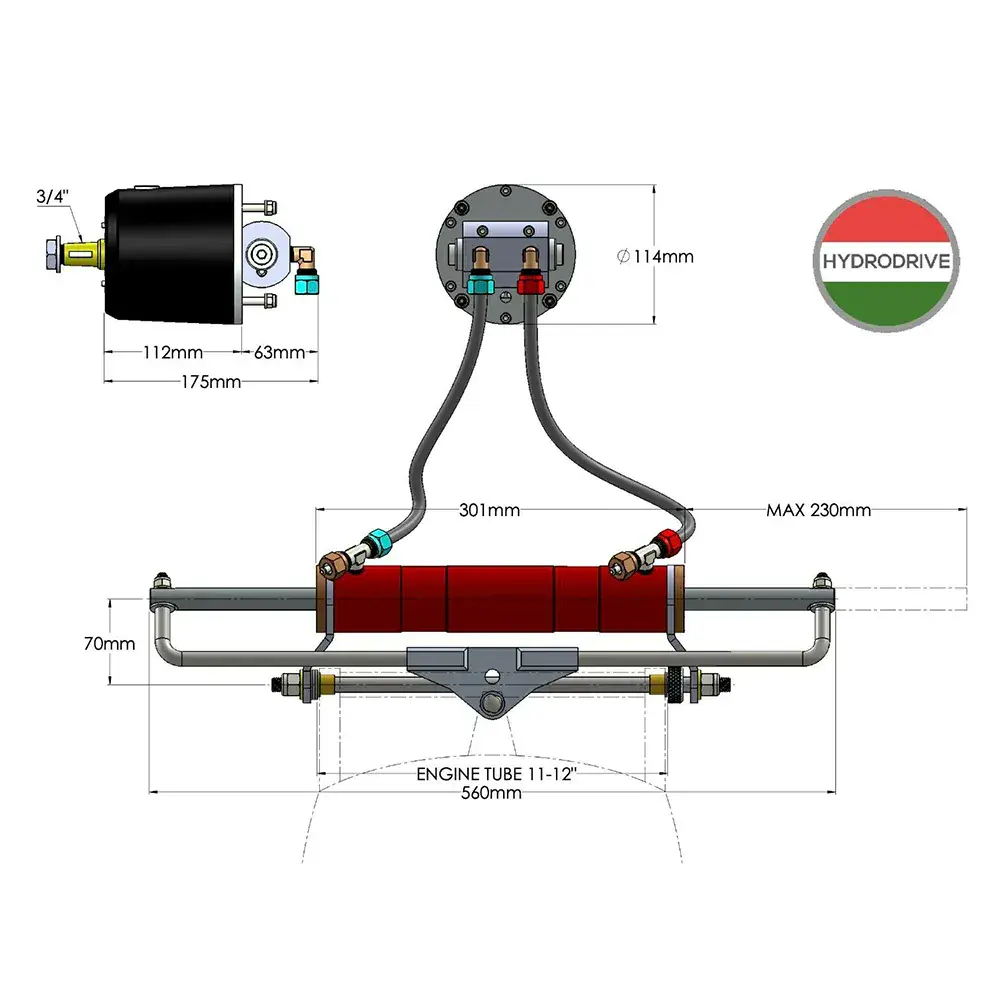

Hydrodrive MF350W outboard hydraulic steering system for engines up to 350 HP with the fixed cylinder. The Hydraulic Cylinder has a new mounting system with a two-position engine plate so you can find the best position for the engine bracket.

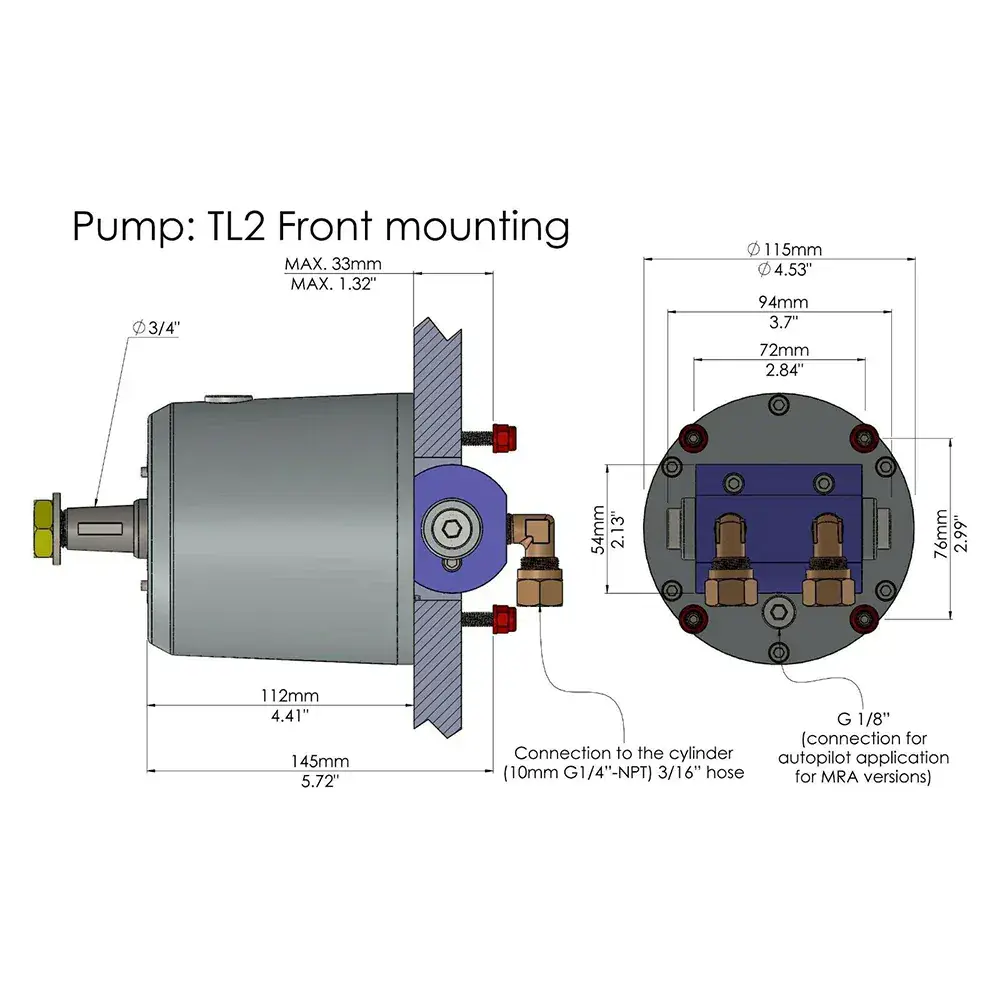

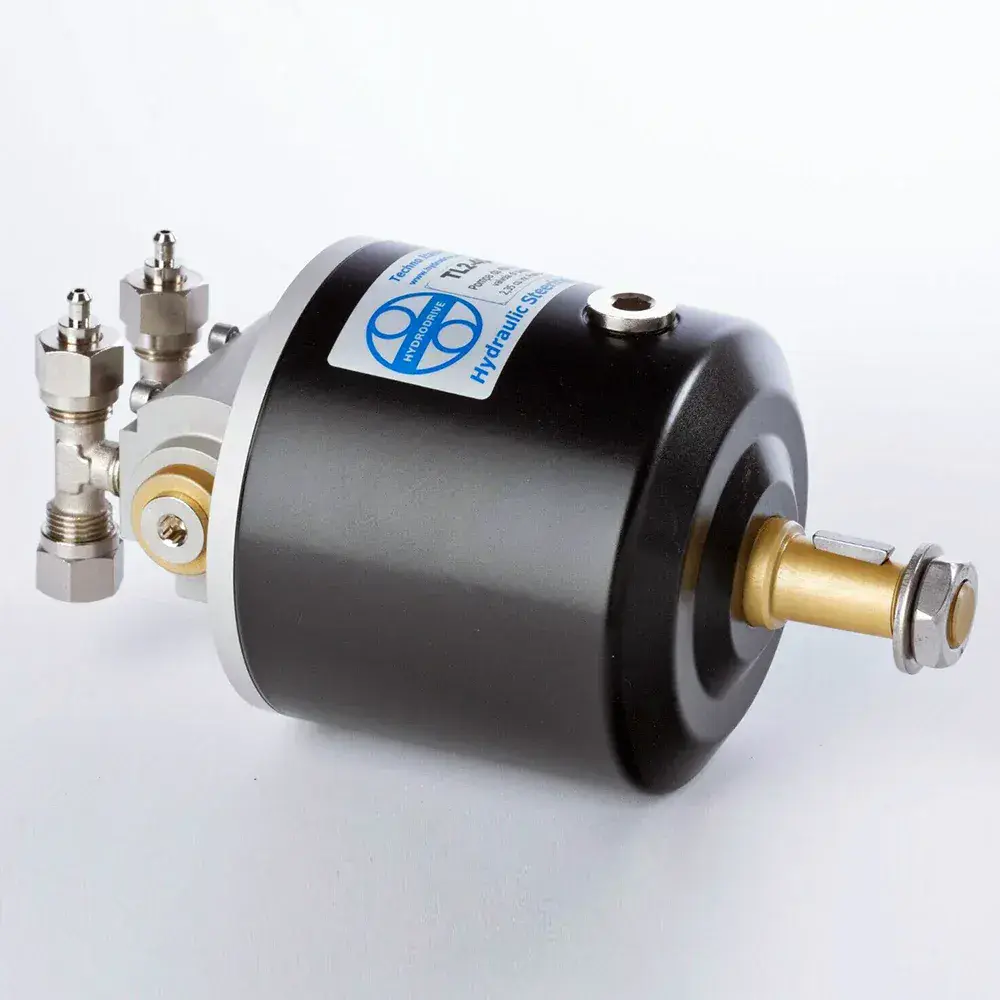

• Hydraulic pump: High precision TL2-30 MRA, 28 cc./rev pump., 5,2 turns
• Hydraulic cylinder: MC350W, 146 cc volume, stroke 206mm
• 7+7 m (23′) high-pressure twin hose set with fittings, 2 L hydraulic oil (E-HVLP 46) (temp.+60°/-30°.)
• Output force: 495 Kg (1090 lbf)
• Torque: 102 Kgm (738 lb-ft)
• Max speed: 60 Knots

Removable cup to replace the shaft seals without opening the pump.
The pump is made of hardened, hot-pressed aluminium.
Anodised and painted pump house, manufactured by precision CNC.
Cylinder made from cold drawn, hardened anodised and painted aluminium.
Universal fittings – Hydrodrive systems can be used on every type of outboard engine.
Easy installation process.
Stainless steel fixing system.

Why Hydrodrive systems are different from other brands?

• Flexible, high-pressure (twin) hose set with fittings
• 3 years of warranty
• Quick and easy installation method
• Average product life of more than 8+ years
• No oil-top-ups
• No ordinary maintenance during life time.

Universal Applications:  Designed to seamlessly fit leading marine engine brands such as Yamaha, Mercury, Evinrude, Suzuki, and more

Technology from the aircraft industry: Hydrodrive systems ensure smooth and accurate manoeuvring in any conditions.

Overload Protection: Hydraulic systems offer inherent overload protection mechanisms. By controlling the pressure or flow rate within the system, hydrodrive systems can prevent damage caused by excessive forces or torque.
