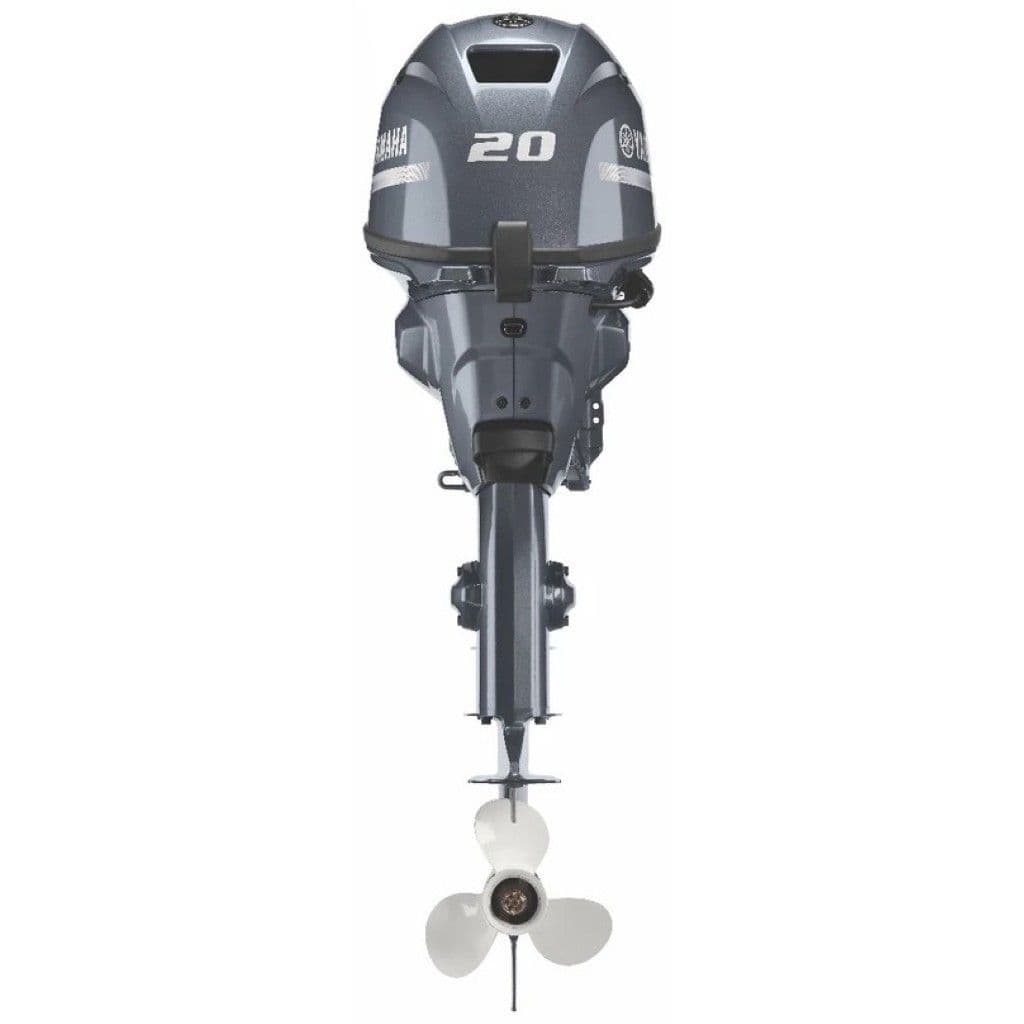

Yamaha F20GWHL

Tiller Control | Electric And Manual Start | Manual Tilt | 62kg

This versatile, twin-cylinder 4-stroke combines power and responsiveness - and delivers a super-smooth ride. Outstanding fuel economy also means that you're being kinder to the environment, with exhaust emissions cut to a minimum.

Enjoy too, the many extras that only a Yamaha outboard delivers. Benefits like computer-controlled ignition, a special light-load starting system, a water-cooled fuel pump, and a large-volume silencer – all normally only found on larger engines. For commercial, professional or leisure use, it adds up to a winning formula.

Engine Specifications:

• Engine type: 4-stroke
• Displacement: 432 cc
• No. of cylinders/configuration: 2/In-line, SOHC
• Bore x stroke: 65.0 mm x 65.1 mm
• Prop shaft output at mid range: 18.4 / 6,000 rpm
• Full throttle operating range: 5,000 - 6,000 rpm
• Lubrication system: Wet sump
• Fuel Induction System: EFI
• Ignition / advance system: CDI
• Gear ratio: 2.08 (27:13)

Dimensions:

• Recommended boat transom height: L 551 mm
• Weight with propeller: F20GWHL 62.0 kg
• Fuel tank capacity: separate, 25 litres
• Oil pan capacity: 1.1 litres

Features:

• Control: Tiller handle
• Start Method: Electric + Manual Pull Start
• Trim and tilt method: Manual Tilt
• Lighting Coil Alternator: Included / (Optional (12v - 16A Output with rectifier/regulator)
• Propeller: Included
