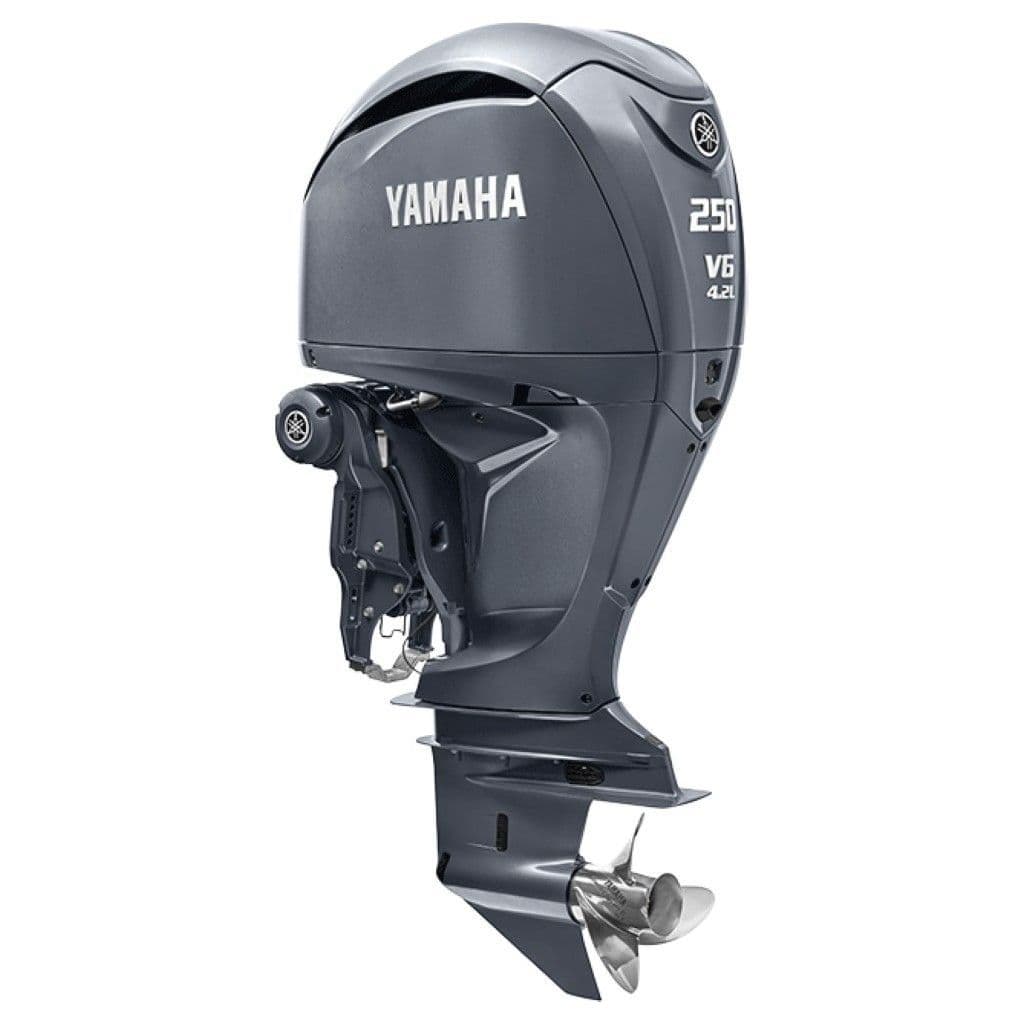

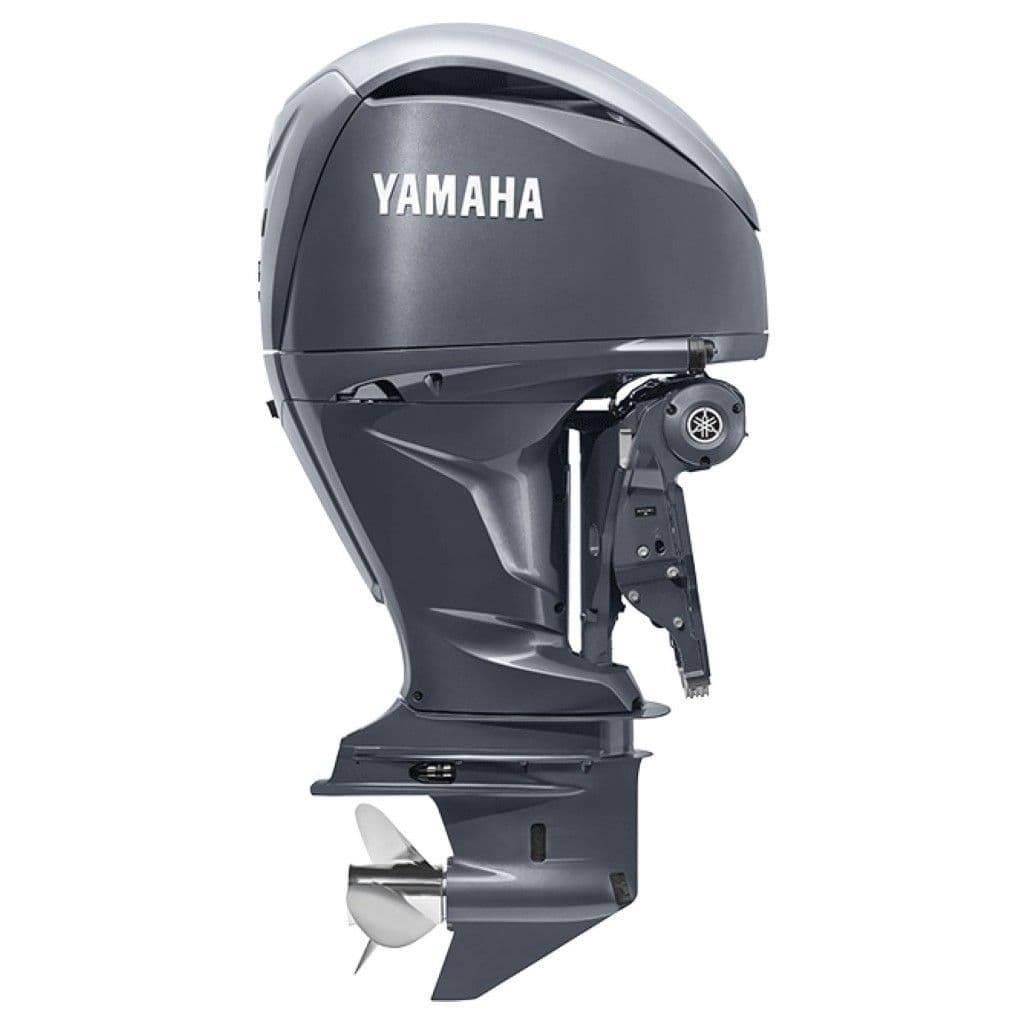

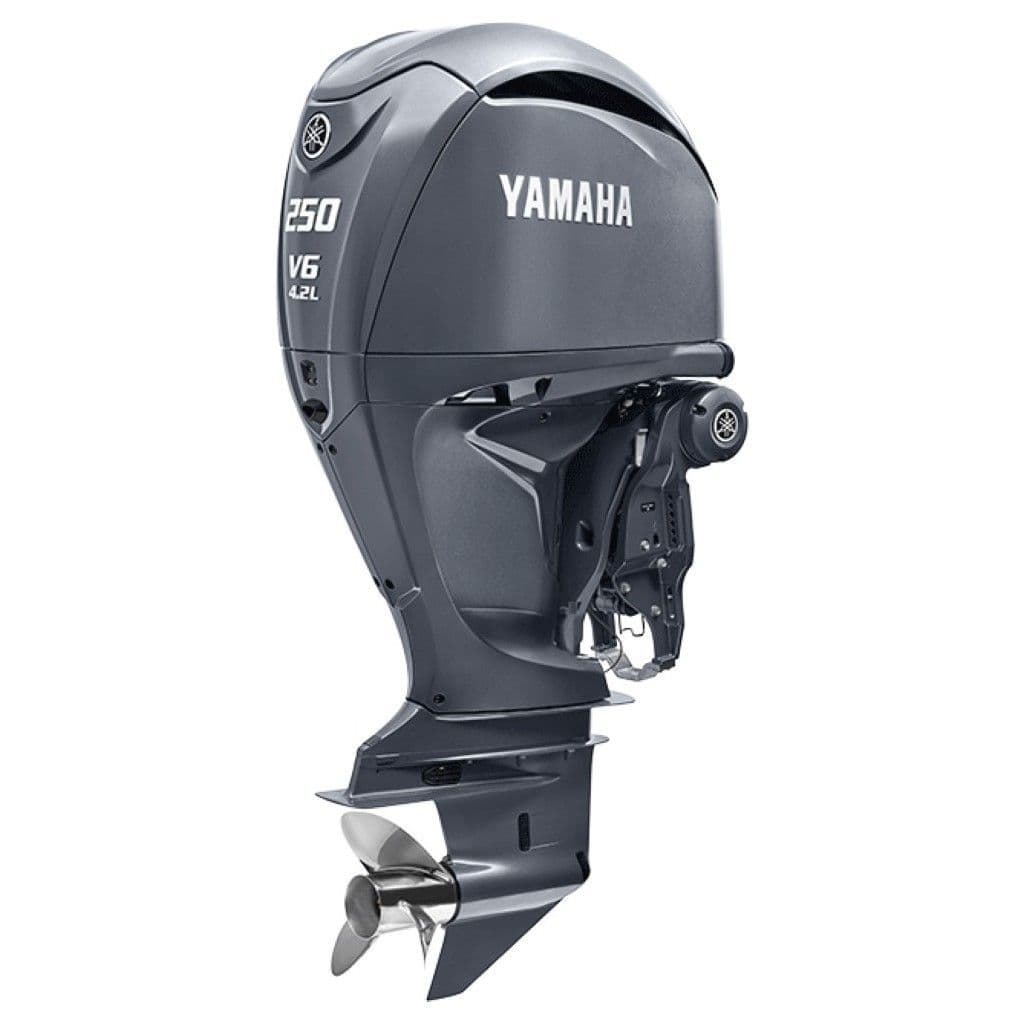

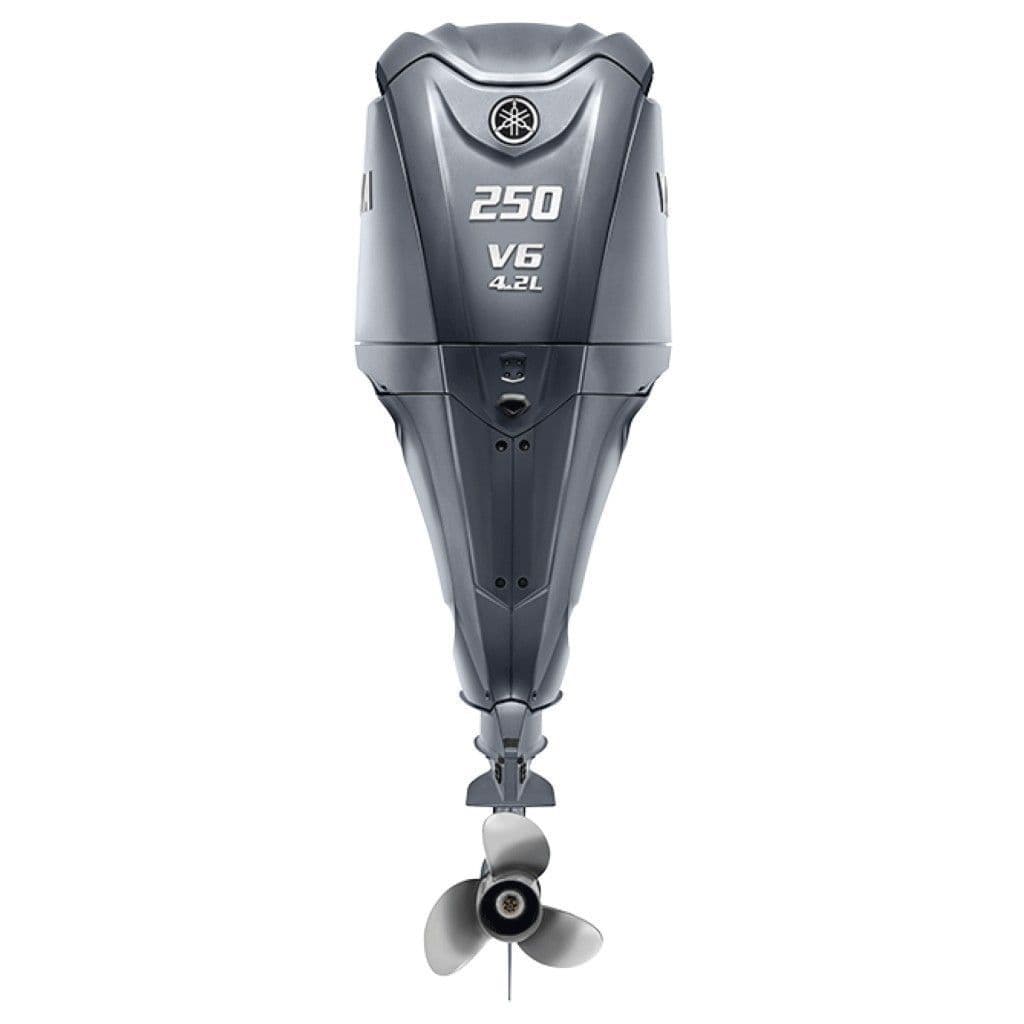

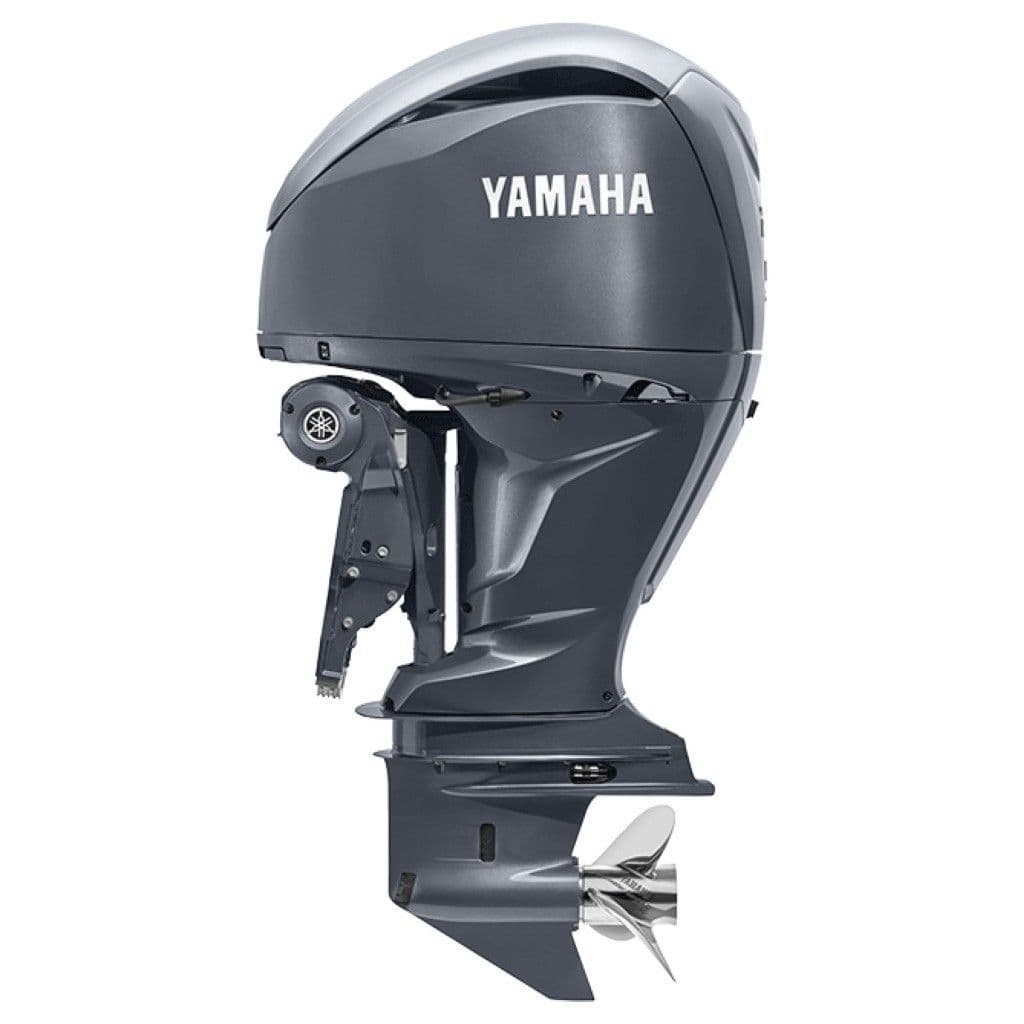

Yamaha F250NSB U

Steer By Wire and Drive By Wire Remote Control | Electric Start | Power Trim And Tilt | 294kg

The F225, F250 and F300 outboards represent the pinnacle of Yamaha's latest-generation marine technology. Designed for the demanding offshore environment, these light, compact V6 engines are the ultimate powerhouses to have behind you on your watersports adventures.

For clean, smooth performance, maximum fuel efficiency and easy starting, the advanced 24-valve DOHC engine features EFI (Electronic Fuel Injection) as well as VCT (Variable Camshaft Timing). Combining technology with style, the sleek, compact design speaks for itself.

Meanwhile, at the helm, Yamaha's 'drive-by-wire' electronic throttle and shift delivers the smoothest, most precise control you'll ever experience.

Engine Specifications:

• Engine type: 4-stroke
• Displacement: 4169 cm³
• No. of cylinders/configuration: V6 (60°), 24-valve, DOHC with VCT
• Bore x stroke: 96.0 mm x 96.0 mm
• Prop shaft output at mid range: 183.8kW / 5,500 rpm
• Full throttle operating range: 5,000 - 6,000 rpm
• Lubrication system: Wet sump
• Fuel Induction System: EFI
• Ignition / advance system: TCI
• Gear ratio: 1.75 (21/12)

Dimensions:

• Recommended boat transom height: U 770 mm
• Weight with propeller: F250NSB U: 294 kg
• Oil pan capacity: 6.3 litres

Features:

• Control: Drive By Wire Remote Control / Throttle and Gear (DBW RC)
• Steering: Steer By Wire (SBW)
• Starting Method: Electric Start (ES)
• Trim & tilt method: Power trim & tilt (PTT)
• Battery Charging: 12v - 70A Output
• Propeller: Included

Rigging Options Available - See Our "Yamaha Outboard Control Box and Rigging Kits" Section View Section
