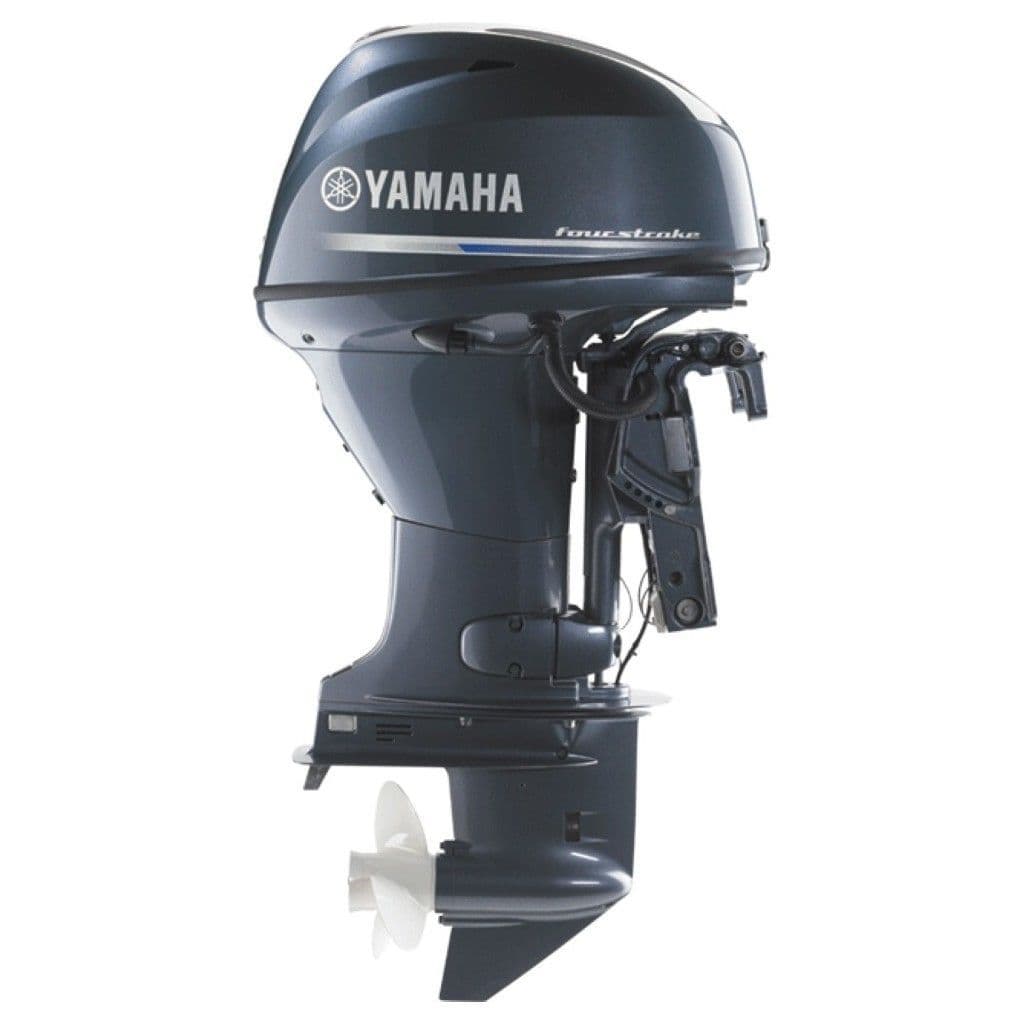

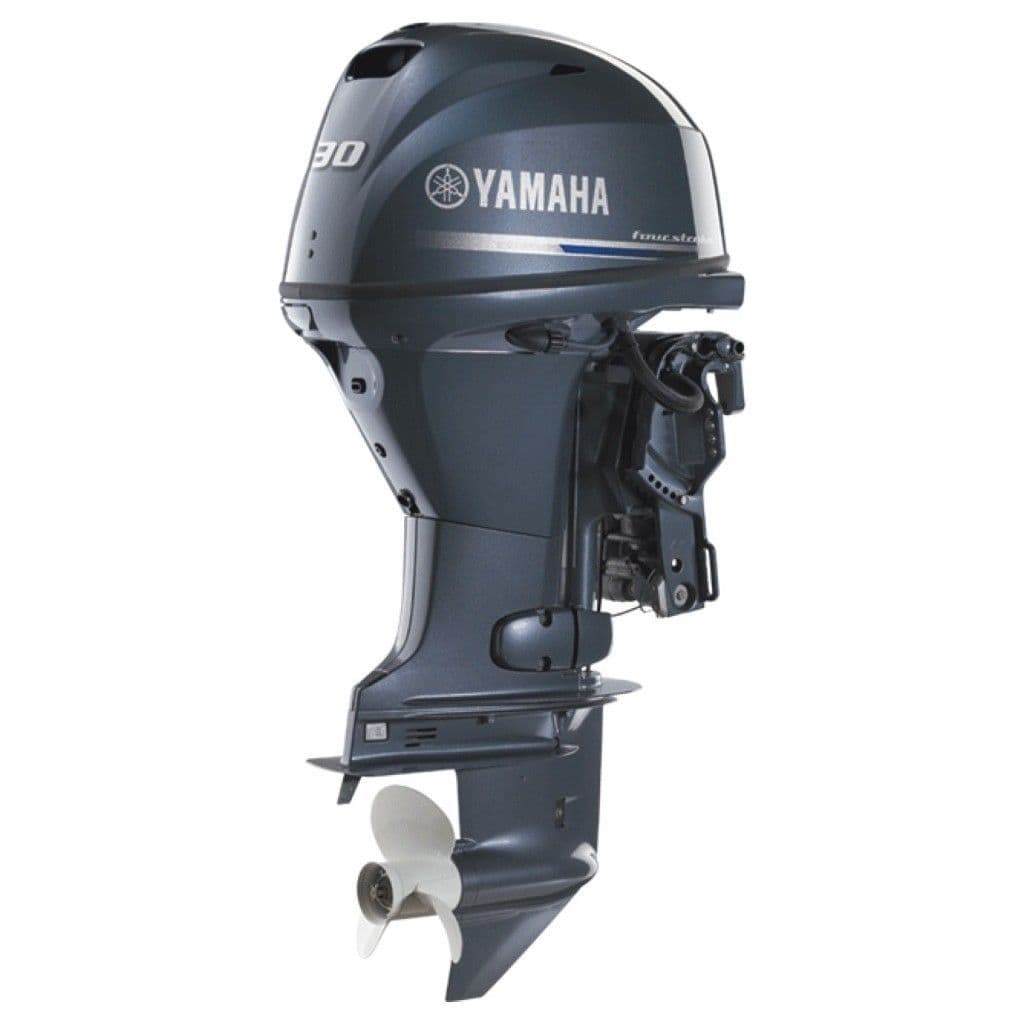

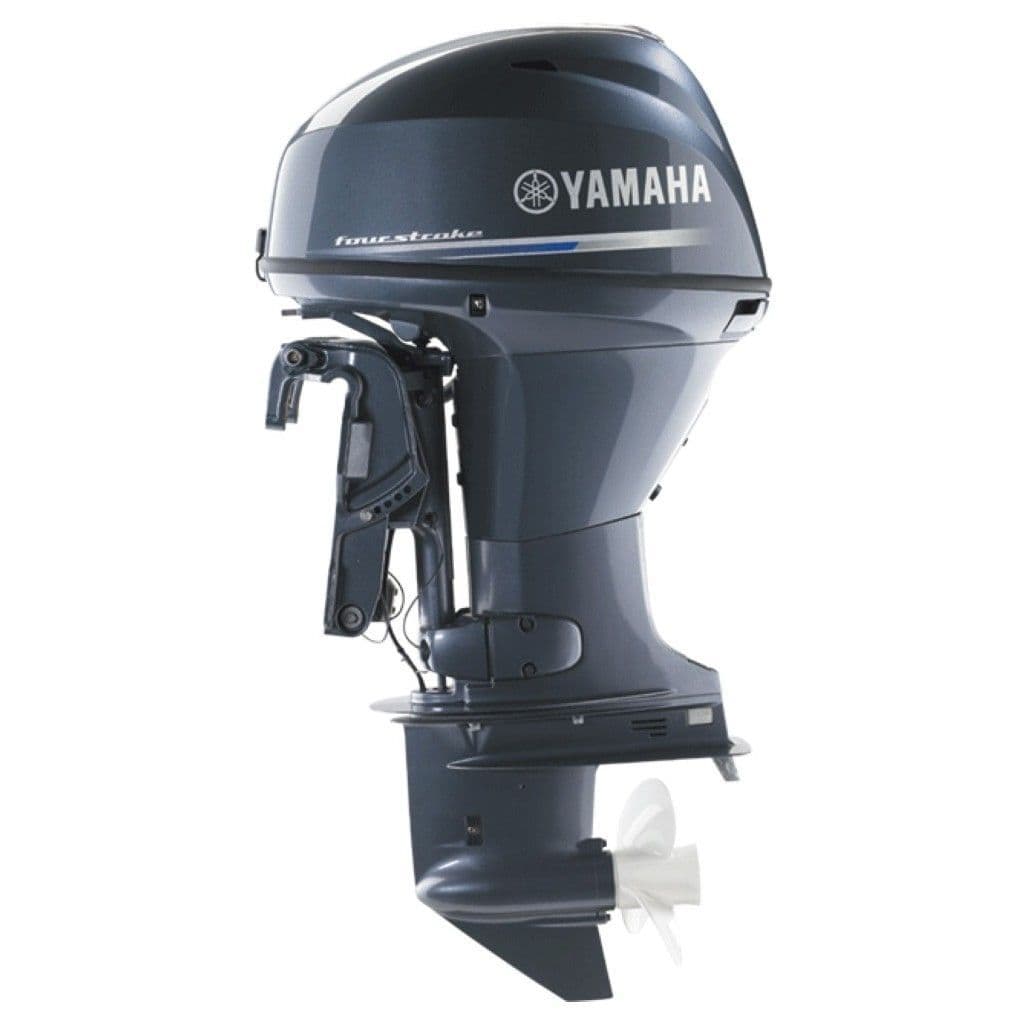

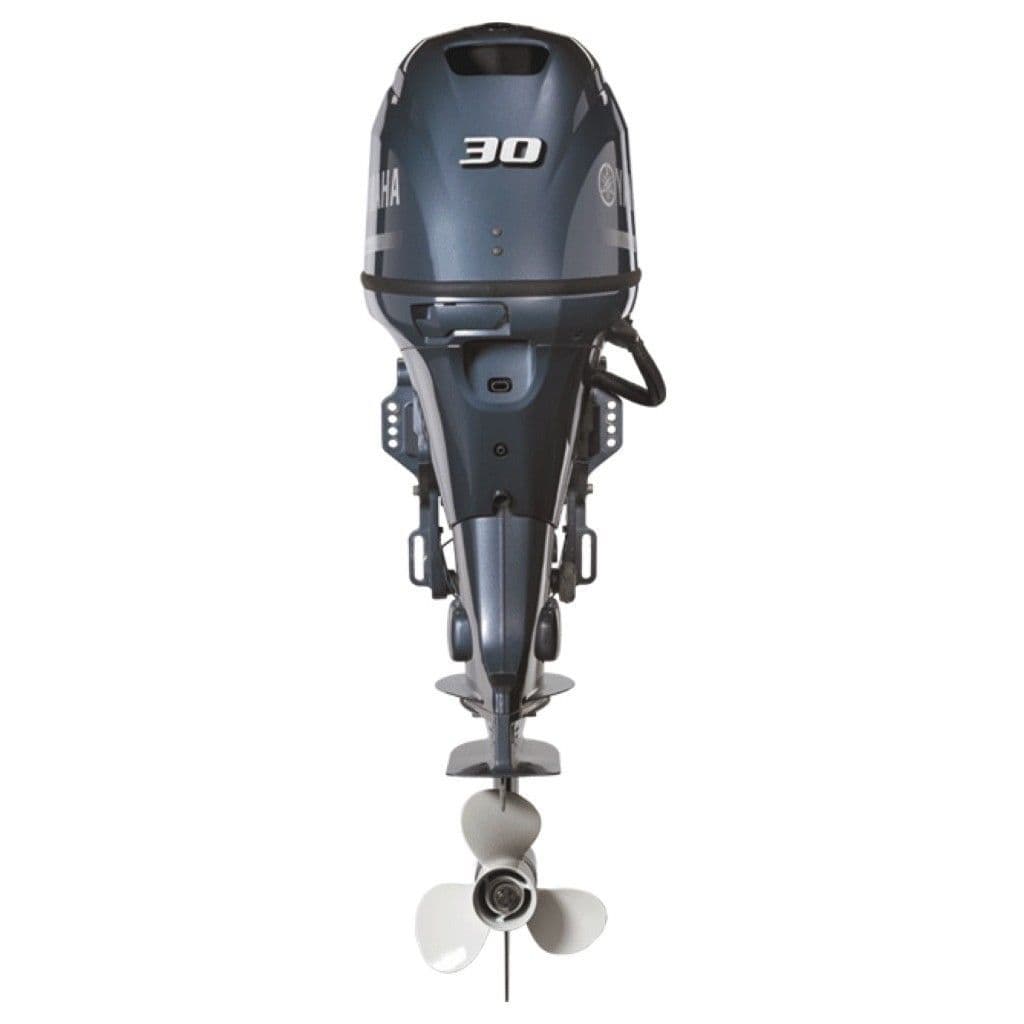

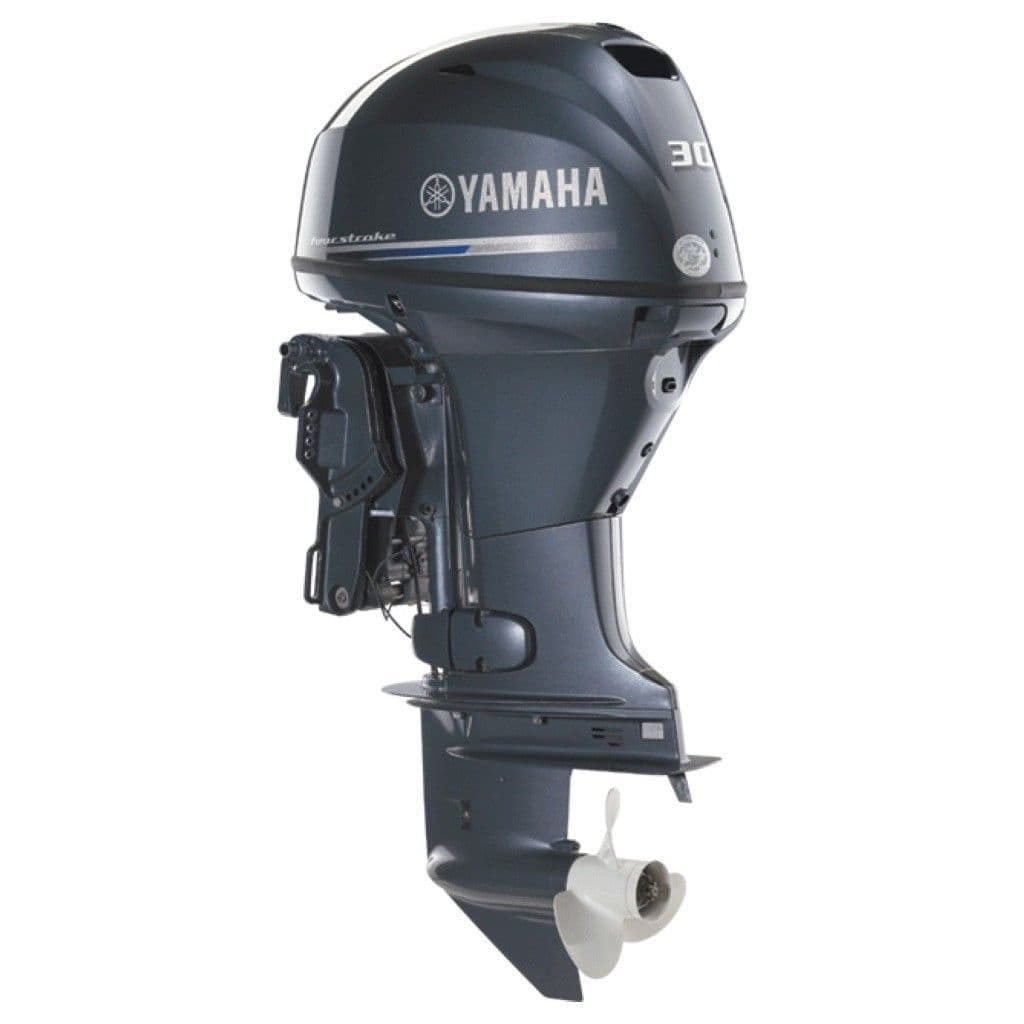

Yamaha F30BEHDL

Tiller Control | Electric Start | Hydro Assist Tilt | 102kg

The lightweight F40 and F30 are designed for simple installation and ease of use, but they're packed with reliable, dependable power too.

Yamaha's Electronic Fuel Injection system (EFI) delivers impressive power at high speeds, plus real mid-range punch and torque along with outstanding economy. PrimeStart™ makes starting up as effortless as it is in your car and since this is a Yamaha, that means first time, every time. Our unique Wide Range Power Trim and Tilt system then lets you take full control.

Engine Specifications:

• Engine type: 4-stroke
• Displacement: 747 cm³
• No. of cylinders/configuration: 3/In-line, SOHC
• Bore x stroke: 65.0 mm x 75.0 mm
• Prop shaft output at mid range: 21.1kW / 5,500 rpm
• Full throttle operating range: 5,000 - 6,000 rpm
• Lubrication system: Wet sump
• Fuel Induction System: EFI
• Ignition / advance system: CDI
• Gear ratio: 2.00 (26/13)

Dimensions:

• Recommended boat transom height: L 536 mm
• Weight with propeller: F30BEHDL: 102 kg
• Fuel tank capacity: separate, 25 litres
• Oil pan capacity: 1.7 litres

Features:

• Control: Tiller Control
• Starting Method: Electric Start
• Trim and tilt method: Hydro Assist Tilt
• Battery Charging: 12v - 17A Output
• Propeller: Included

Rigging Options Available - See Our "Yamaha Outboard Control Box and Rigging Kits" Section View Section
