Product Description

These engines, with their smart, stylish looks, are so light and easy to handle, that carrying one between the shore and the deck of your main boat is a breeze. The F4, F5 and F6 are convenient to store and use, offering the power you need to hit the water with confidence.

Compact size, large carrying handles and built-in fuel tanks enhance their portability – and start-up is easy with Yamaha's CDI Ignition System. Low fuel consumption, simple controls and low noise and vibration levels, along with Yamaha reliability, come as standard.

For families wanting to get on the water easily - or a yacht owner wanting a handy auxiliary - the F4, F5 and F6 offer the smart solution.

Technical Engine Specifications:
Engine type: 4-stroke
Displacement: 139 cm³
No. of cylinders/configuration: 1, OHV
Bore x stroke: 62.0 mm x 46.0 mm
Prop shaft output at mid range: 3.7kW / 5000 rpm
Full throttle operating range: 4,500 - 5,500 rpm
Lubrication system: Wet sump
Fuel Induction System: 1-Carb
Ignition / advance system: CDI
Gear ratio: 2.08 (27/13)

Dimensions:
Recommended boat transom height: S:440mm
Weight with propeller: F5AMHS: 27.0 kg
Fuel tank capacity: 1.1 litres (Built-in fuel tank) or optional separate fuel tank
Oil pan capacity: 0.6 litres

Features:
Control: Tiller handle
Start Method: Manual Pull
Trim & tilt method: Manual
Battery Charging: Optional 12v - 6A Output with charging kit)
Propeller: Included
Shallow Water Drive: Standard

Attributes & Shipping Weight

MPN
F5AMHS
Brand
Yamaha
Condition
New
Product Code
F5AMHS
Weight
36kg

Delivery & Returns


BHG Marine strive to use the most cost effective & reliable trackable & insured delivery services available.

Our prefered service for small packets is Royal Mail 1st class signed & special delivery. DPD for the larger parcels & various freight & palet delivery services for the large & bulky items. We also have our own dedicated delivery service for larger crated engines, boats & trailers.

Together with our delivery partners our delivery policy gives us a fast & reliable service.



Returns Policy | Delivery Policy

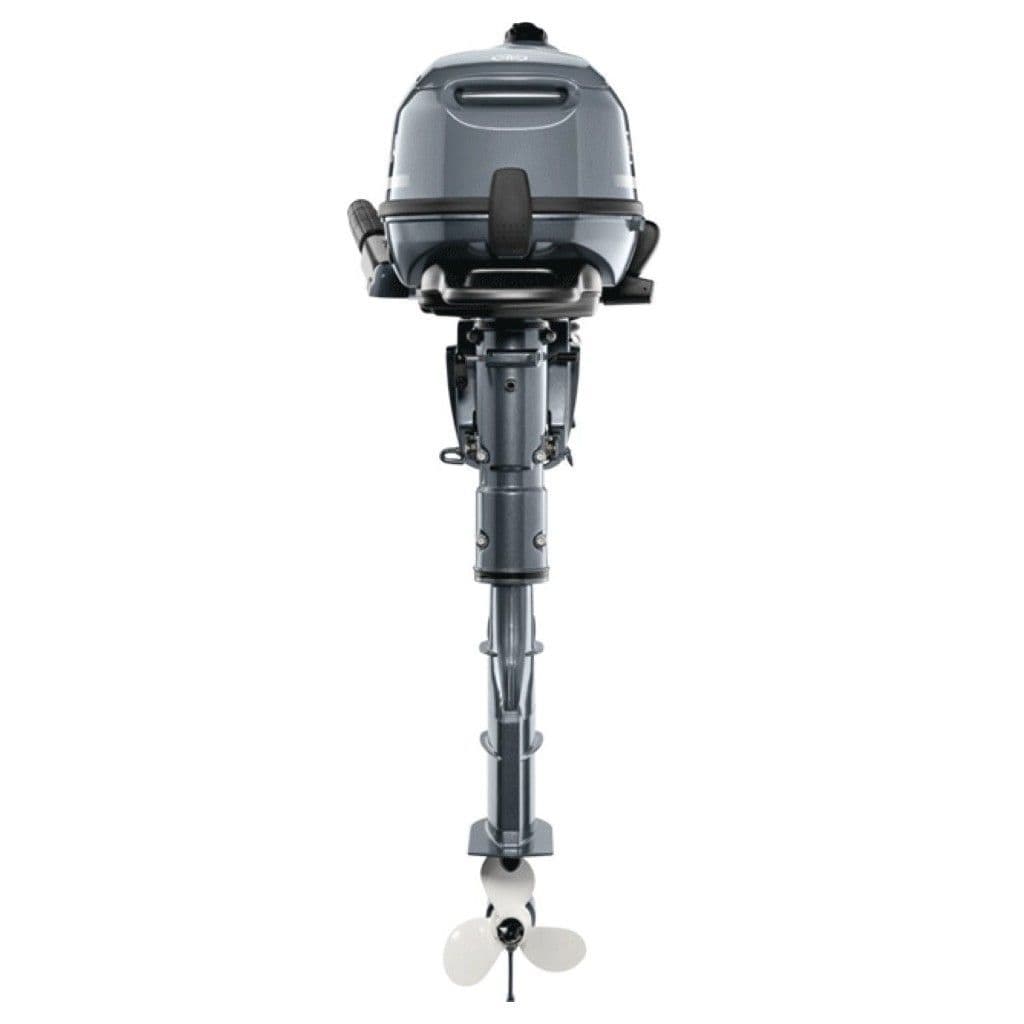

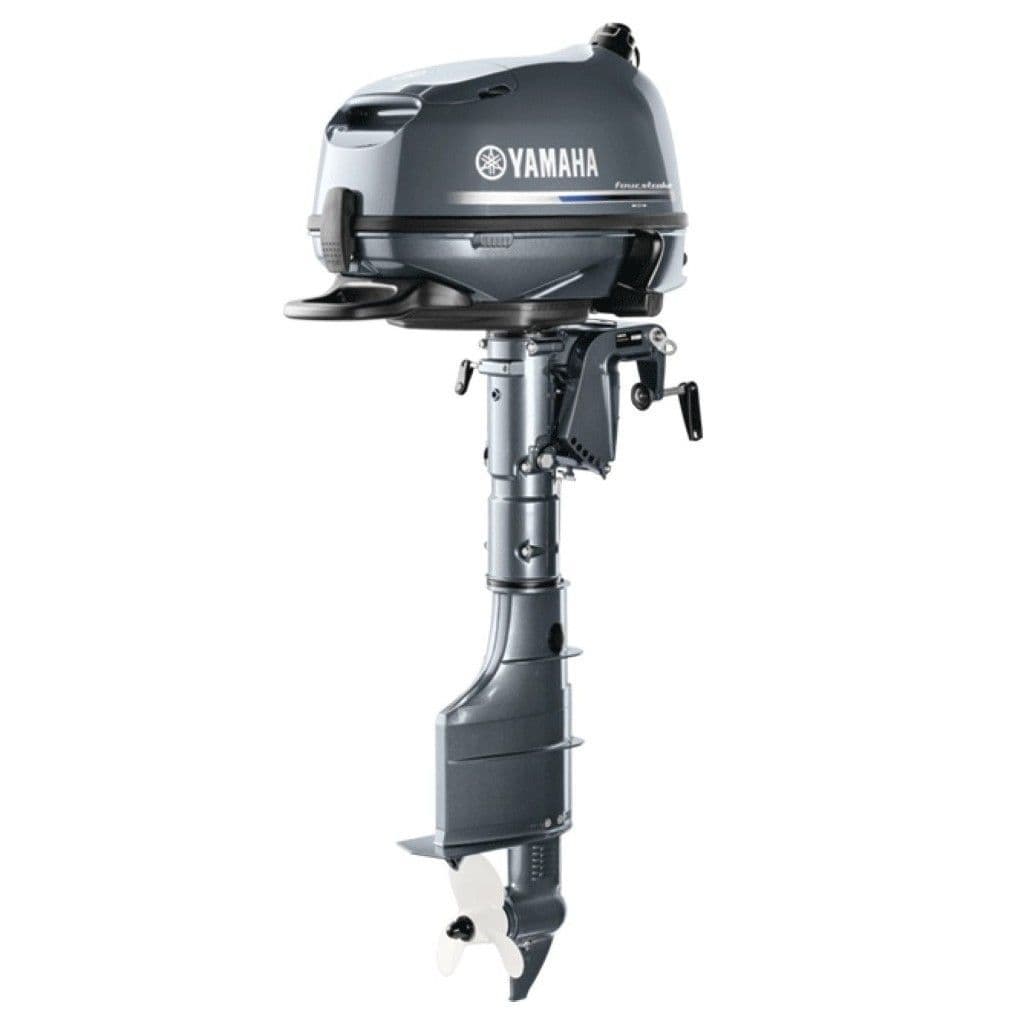

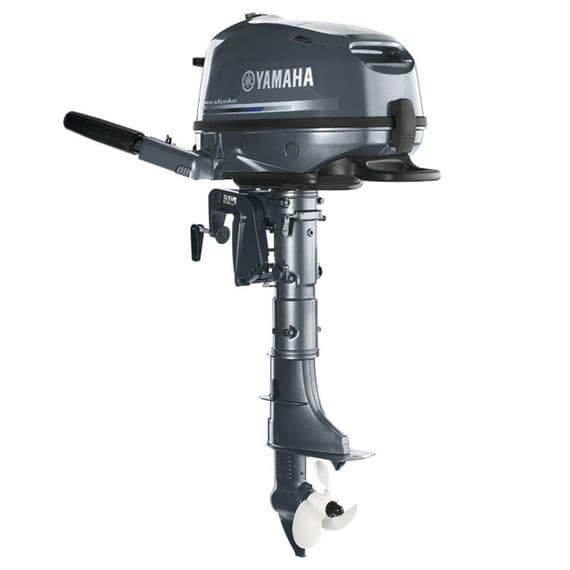

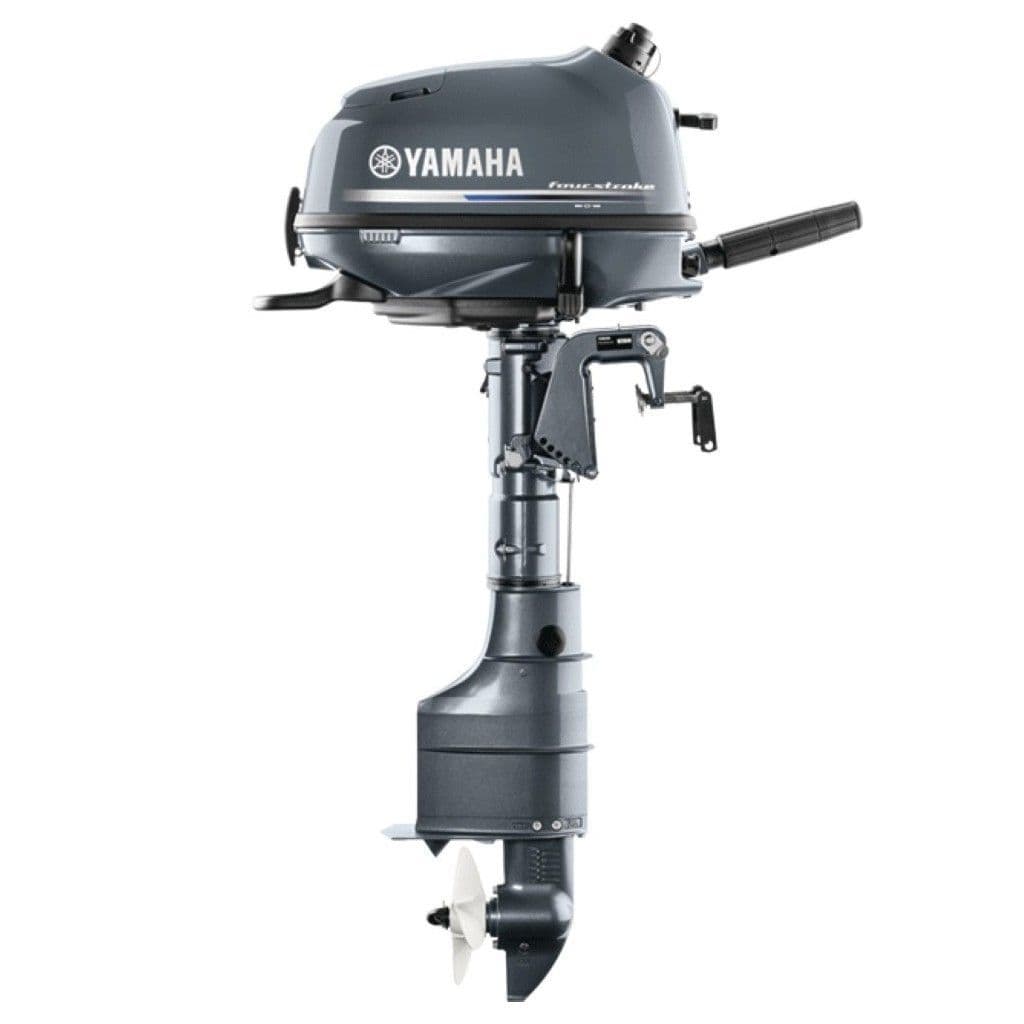

Yamaha F5AMHS 5HP Standard Shaft Outboard

Product Code F5AMHS

Tiller Control, Manual Start & Tilt, 27kg
