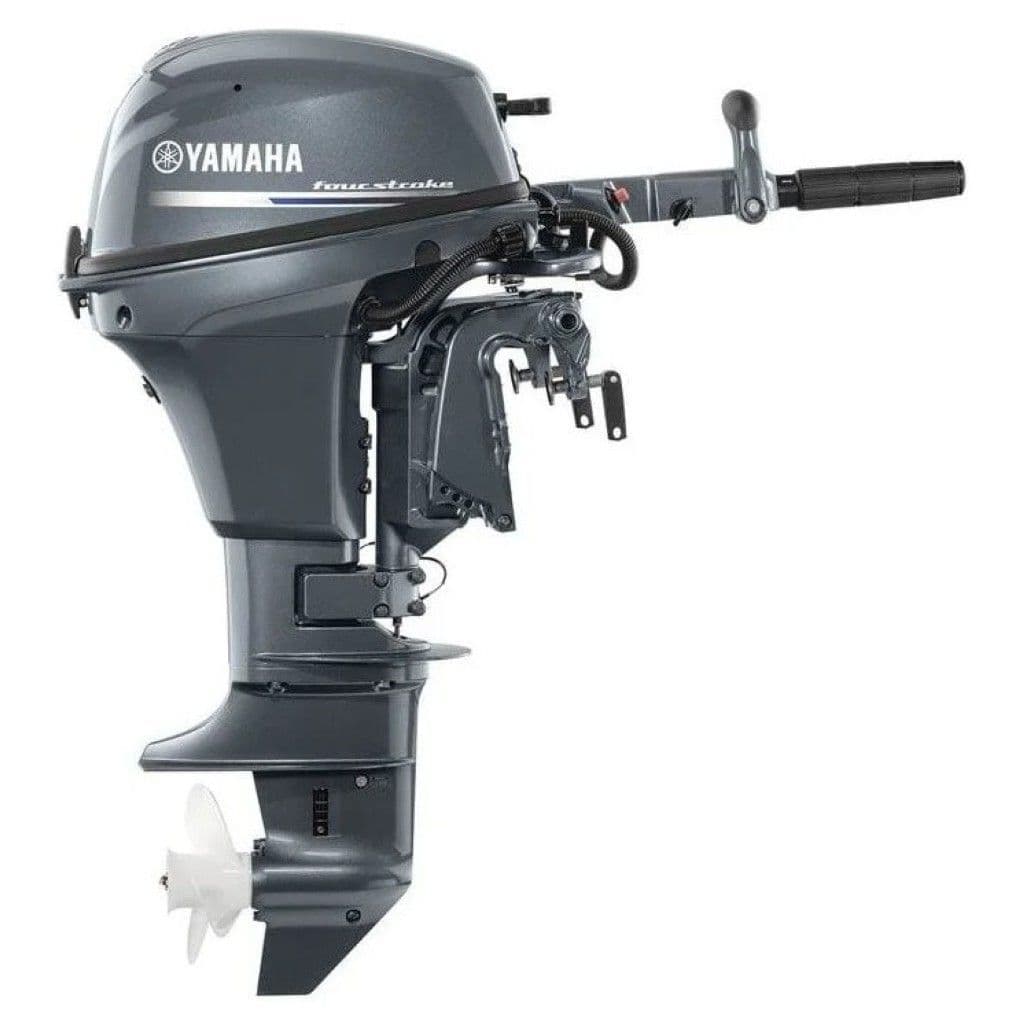

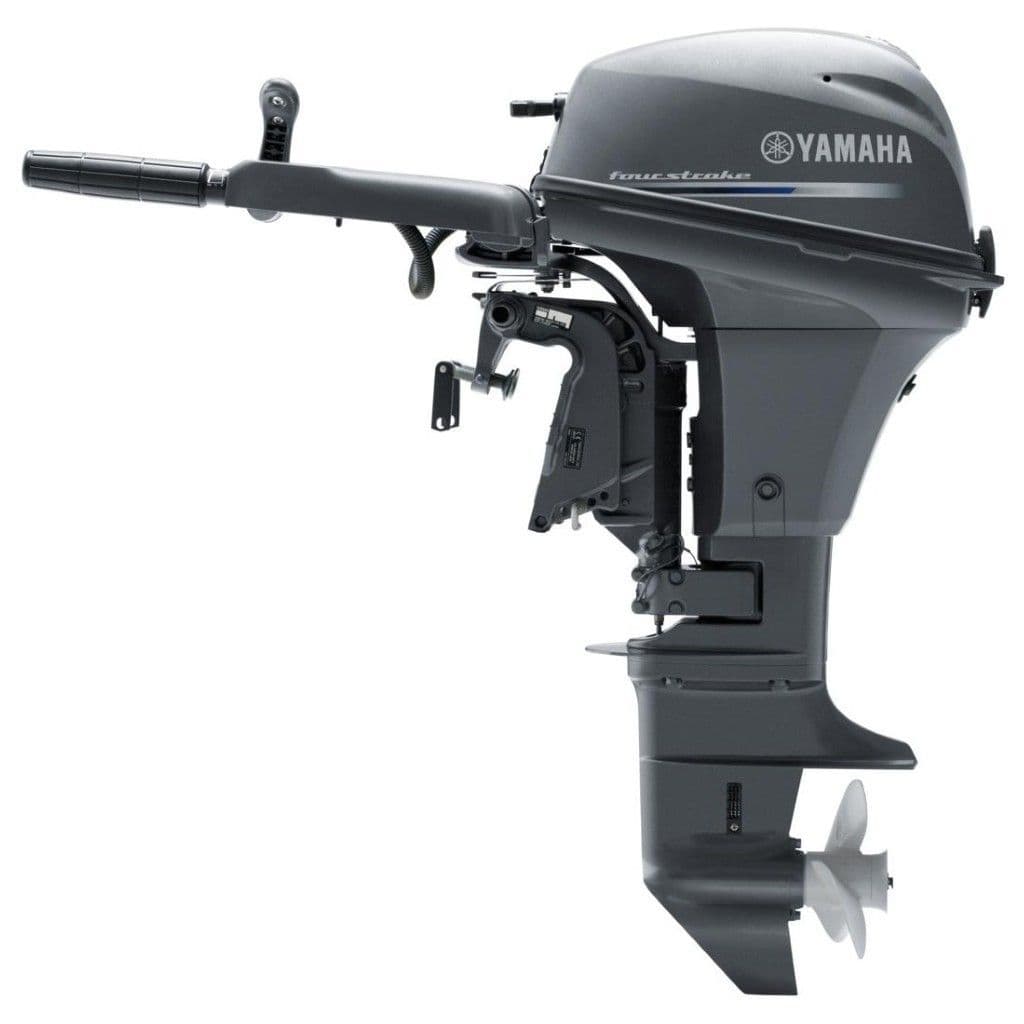

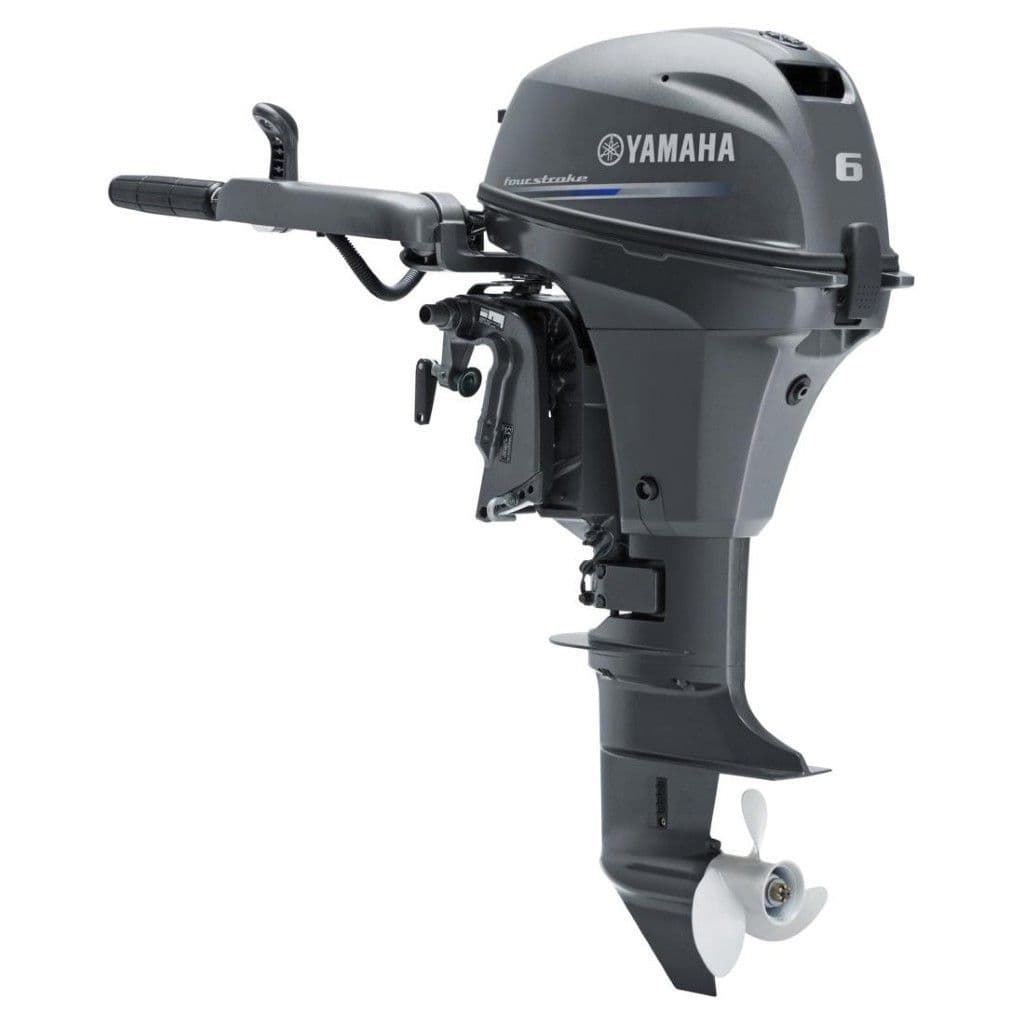

Yamaha F6SMHB

Tiller Control | Manual Start | Manual Tilt | 38kg

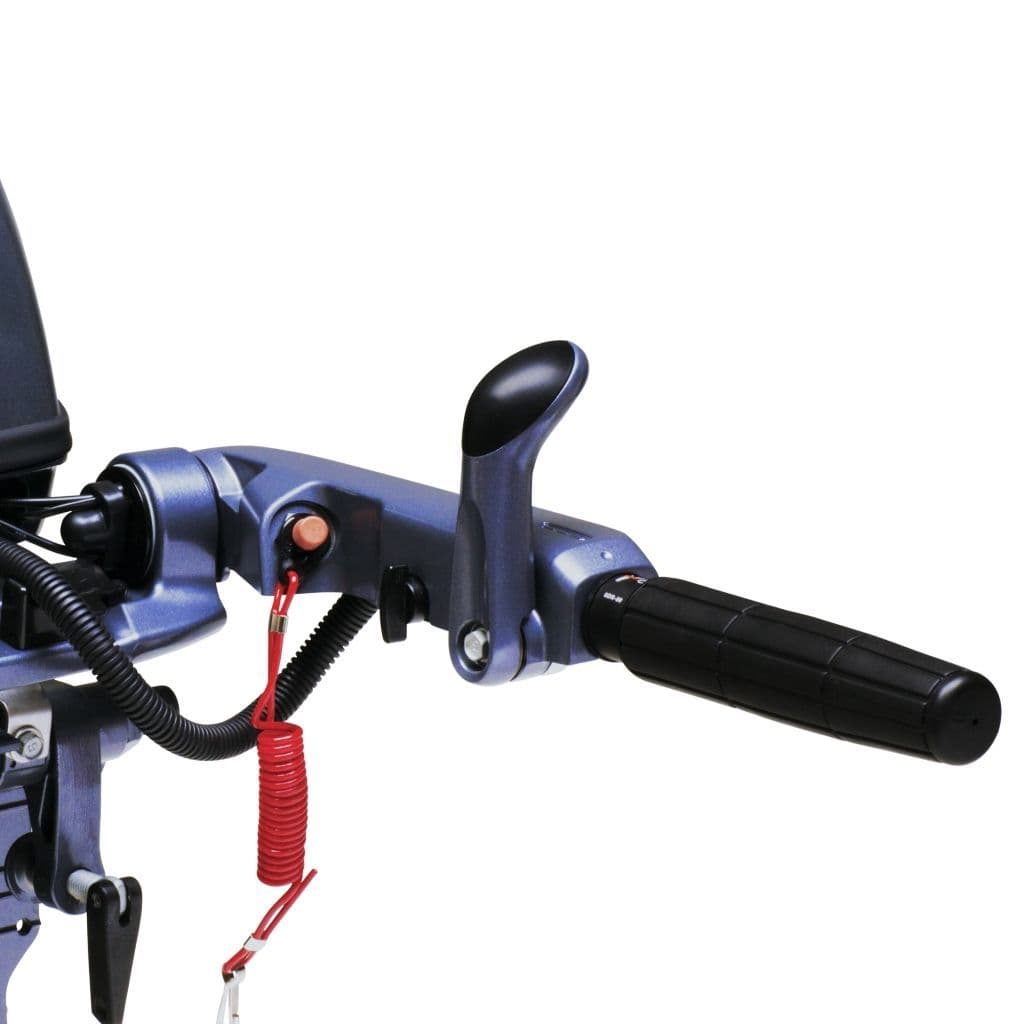

Make boat handling a breeze with the ergonomic tiller handle, perfectly sized and positioned to give you comfort and confidence on the water. A separate helm and throttle is available for console boats, giving you greater control and ease of handling. Combine this with incredibly quiet operation and you have a more relaxed, leisure boating experience from a portable engine.

The F6 is an impressively high torque engine, ideally suited to powering larger, heavier boats. It is very economical to run, making it ideal for river boats and commercial users. The Shallow Water Drive System and optional Dual-Thrust propeller gives you power and flexibility in any environment.

Engine Specifications:

• Engine type: 4-stroke
• Displacement: 212cc
• No. of cylinders/configuration: 2/In-line, SOHC
• Bore x stroke: 56.0 mm x 43.0 mm
• Prop shaft output at mid range: 4.4kW / 5,500 rpm
• Full throttle operating range: 5,000-6,000 rpm
• Lubrication system: Wet sump
• Fuel Induction System: 1-Carb
• Ignition / advance system: CDI
• Gear ratio: 2.08 (27:13)

Dimensions:

• Recommended boat transom height: S: 431 mm
• Fuel tank capacity: Separate, 12 litres
• Oil pan capacity: 0.8 litres
• Weight without propeller: 38 kg

Features:

• Control: Tiller handle
• Start Method: Manual Pull
• Trim and tilt method: Manual Tilt
• Lighting Coil Alternator: Included / (Optional 12v - 6A Output with rectifier/regulator)
• Propeller: Included
