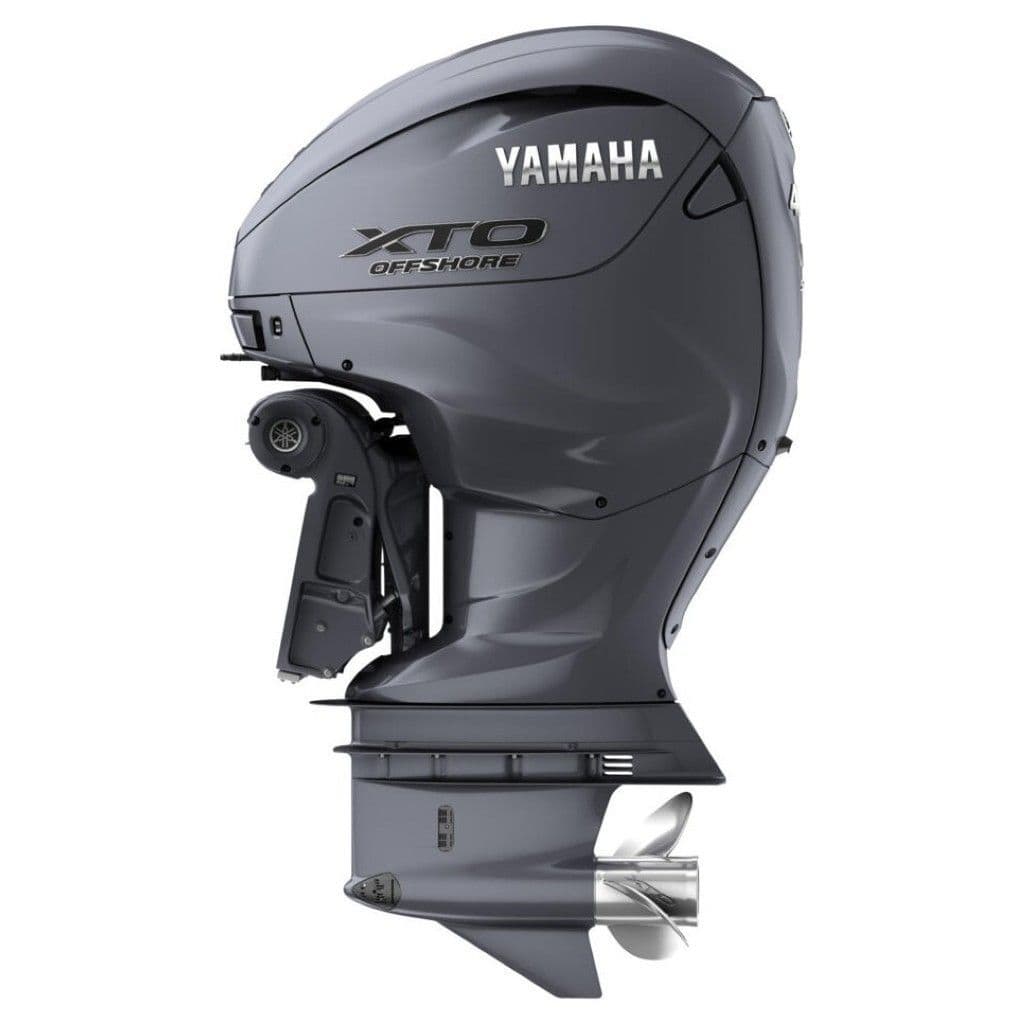

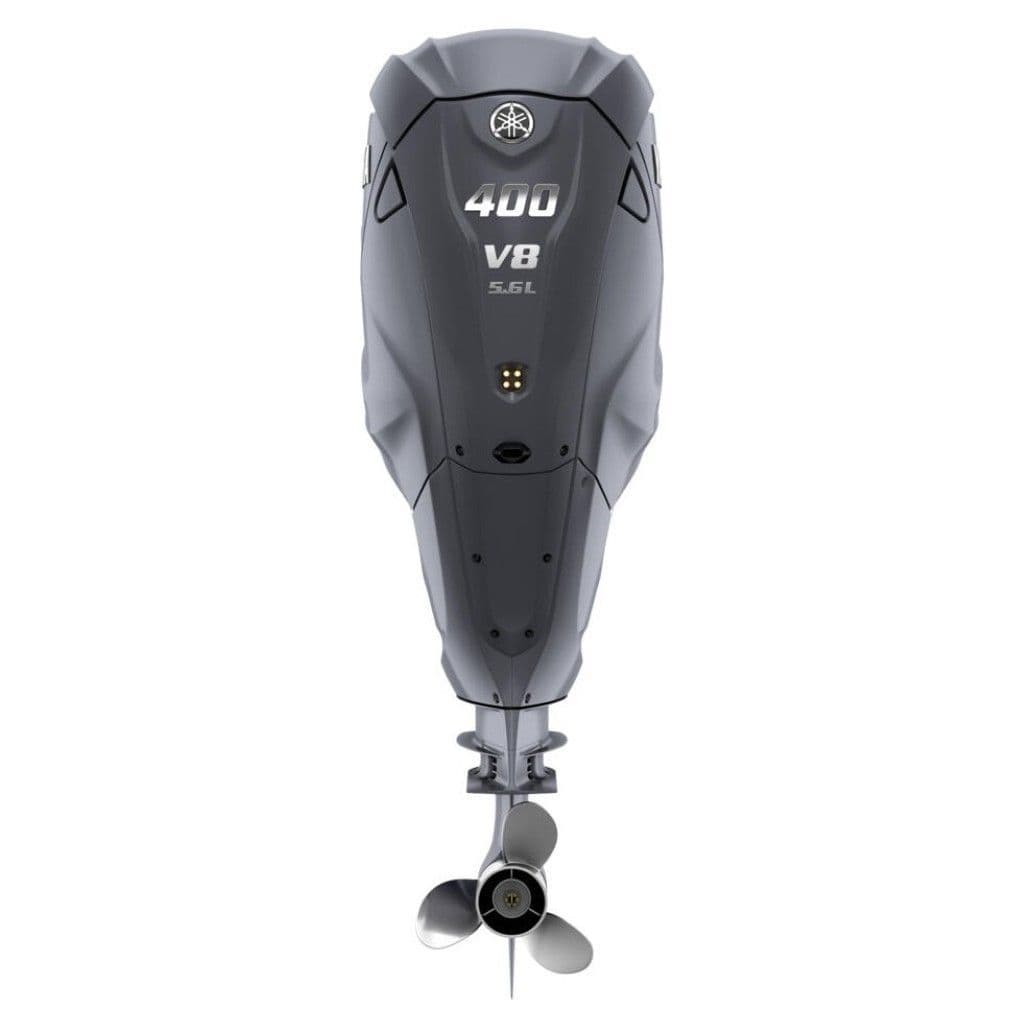

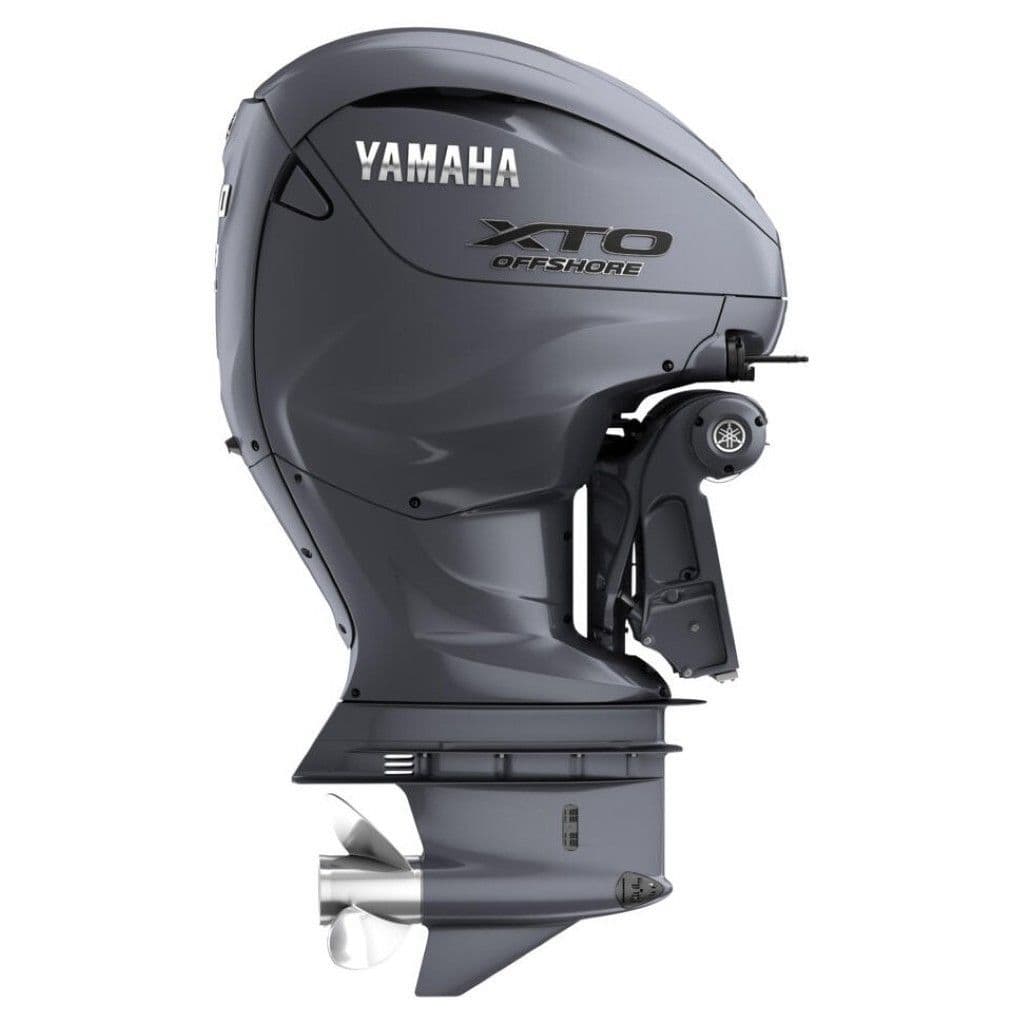

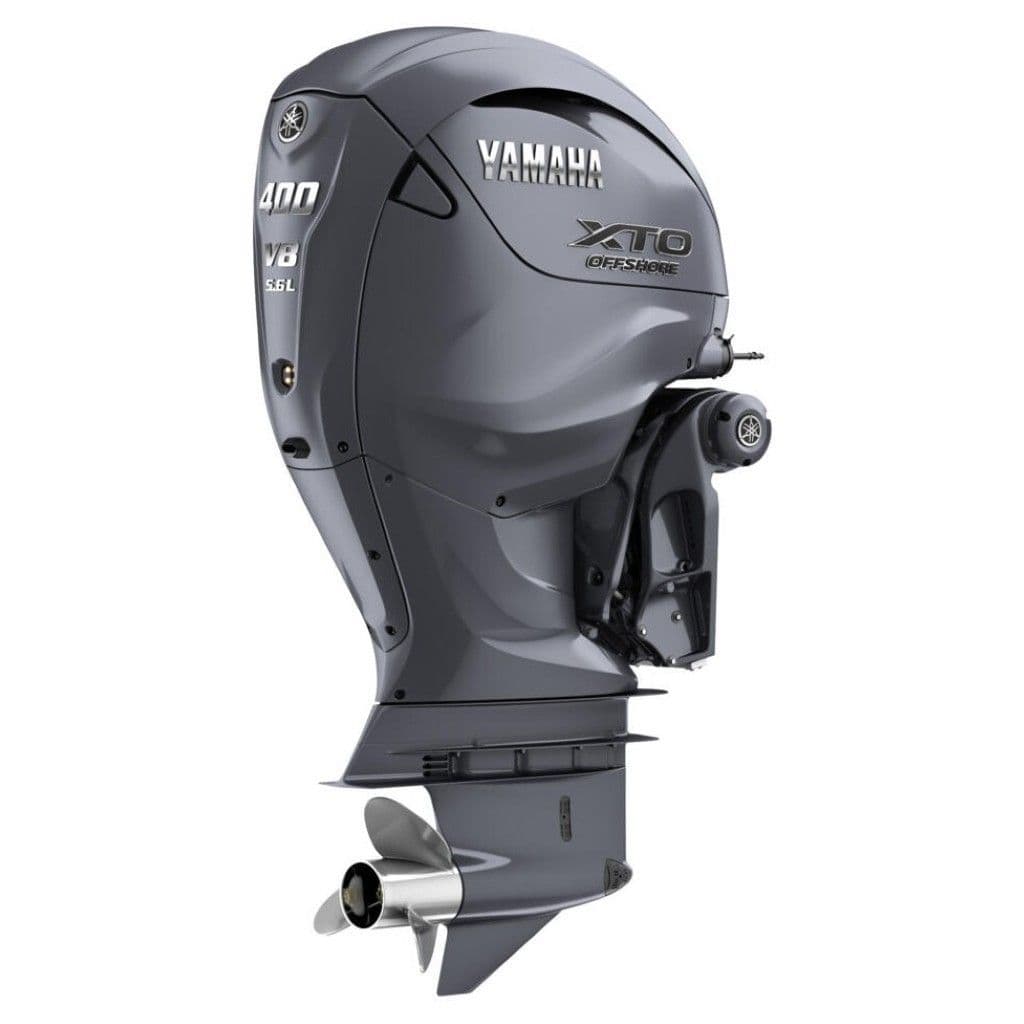

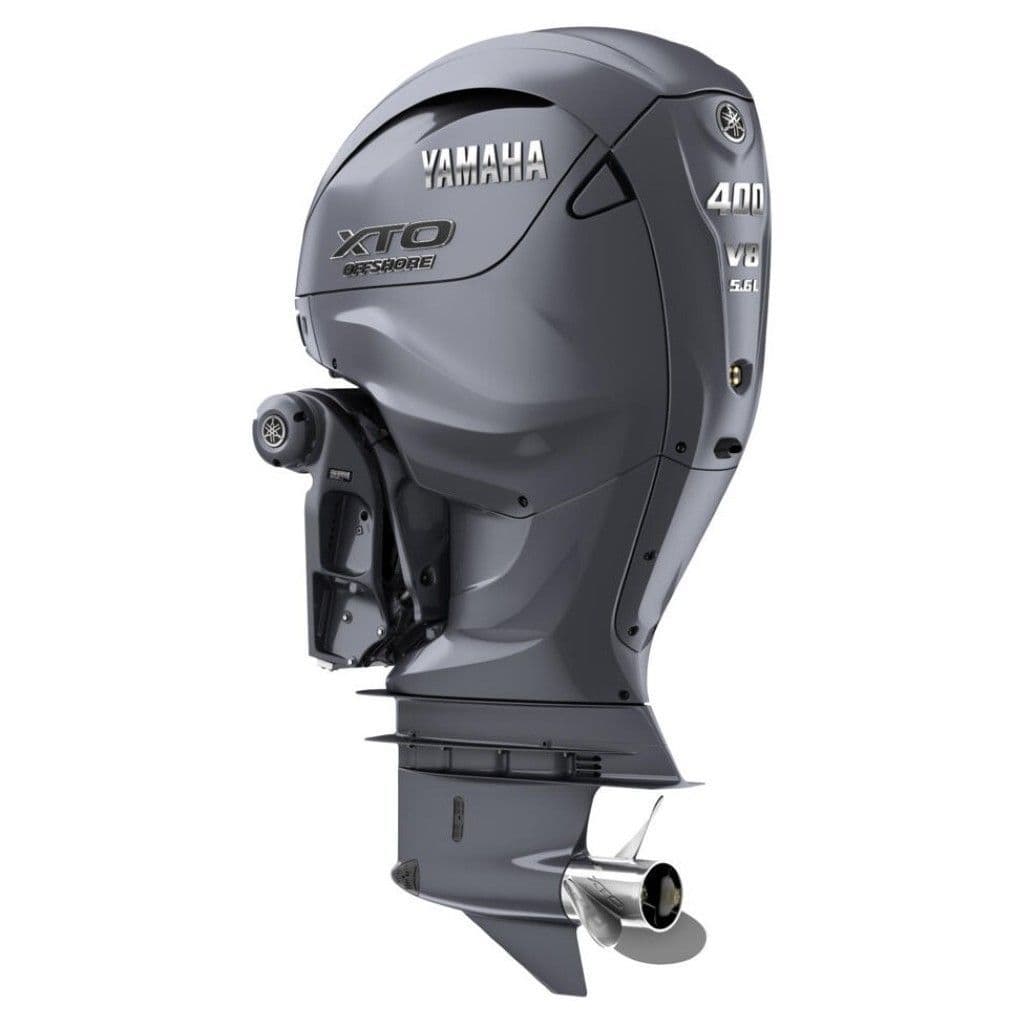

Yamaha XF400NSA U XTO

Steer By Wire and Drive By Wire Remote Control | Electric Start | Power Trim And Tilt | 453kg

The muscular new shape and dynamic look of the XTO 400hp V8 immediately communicate its incredible industry-first concepts and technologies waiting to be unleashed.

The first direct injection 4-stroke. The first with integral electronic steering, linking seamlessly to Yamaha's Helm Master® system. The first to achieve a new level of reverse thrust, torque, and speed. It's a genuine performance revolution for larger boats and an incredible story. Achieve the ultimate. Discover Extreme.

Engine Specifications:

• Engine type: 4-stroke
• Displacement: 5559 cc
• No. of cylinders/configuration: 60 Degree V8, 32-valve, DOHC with VCT
• Bore x stroke: 96 mm x 96 mm
• Prop shaft output at mid range: 298kW / 6,000 rpm
• Full throttle operating range: 5,000 - 6,000 rpm
• Lubrication system: Wet sump
• Fuel System: Direct Injection
• Ignition / advance system: TCI
• Gear ratio: 1.79 (25/14)

Dimensions:

• Recommended boat transom height: U 767 mm
• Weight with propeller: 453 kg
• Oil pan capacity: 7.8 litres

Features:

• Control: Drive By Wire Remote Control / Throttle and Gear (DBW RC)
• Steering: Steer By Wire (SBW)
• Starting Method: Electric Start (ES)
• Trim and tilt method: Power trim and tilt (PTT)
• Battery Charging: 12v - 90A Output
• Propeller: Included

Rigging Options Available - See Our "Yamaha Outboard Control Box and Rigging Kits" Section View Section
